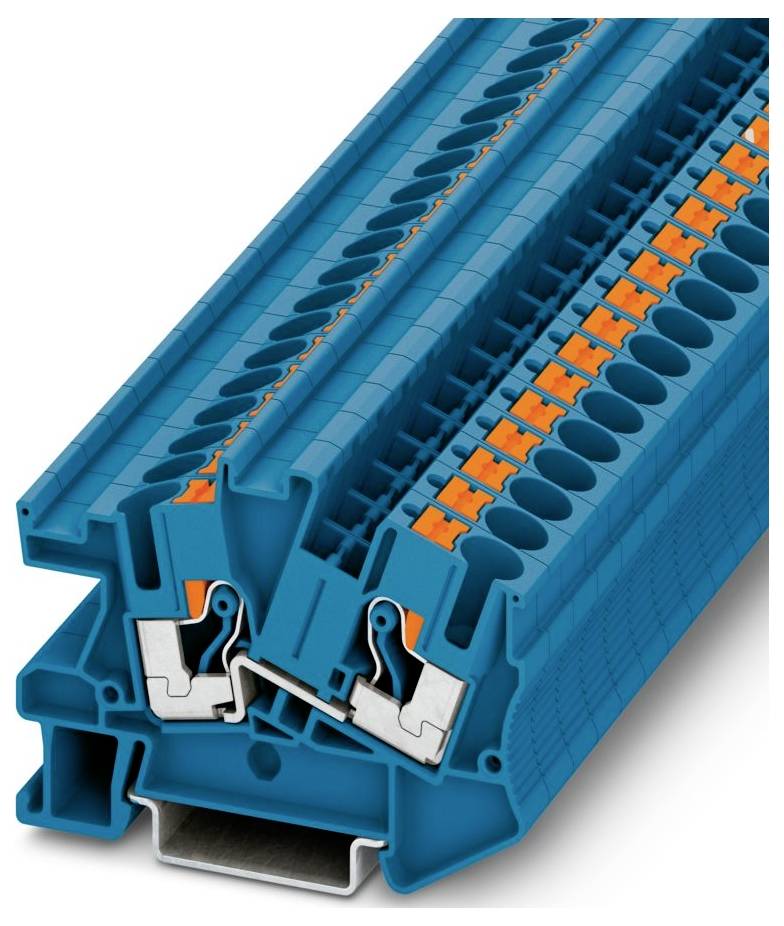

Phoenix Contact 3213973 Terminal Push-in connector Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Terminal
Connection
Push-in connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Highlights & Details
- PTI 6 BU
Technical specifications
- Packaging type
Piece
- Product type
Terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Factory colour
Blue
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
800 V
- Manufacturer part #
3213973
- Content
50 pc(s)
- Type
PTI 6 BU
- Dim
(W x H x D) 8.15 x 66.014731 x 48.5 mm
- Width
8.15 mm
- Height
66.014731 mm
- Flammability rating
V0
- Depth
48.5 mm
- UKCA
yes
