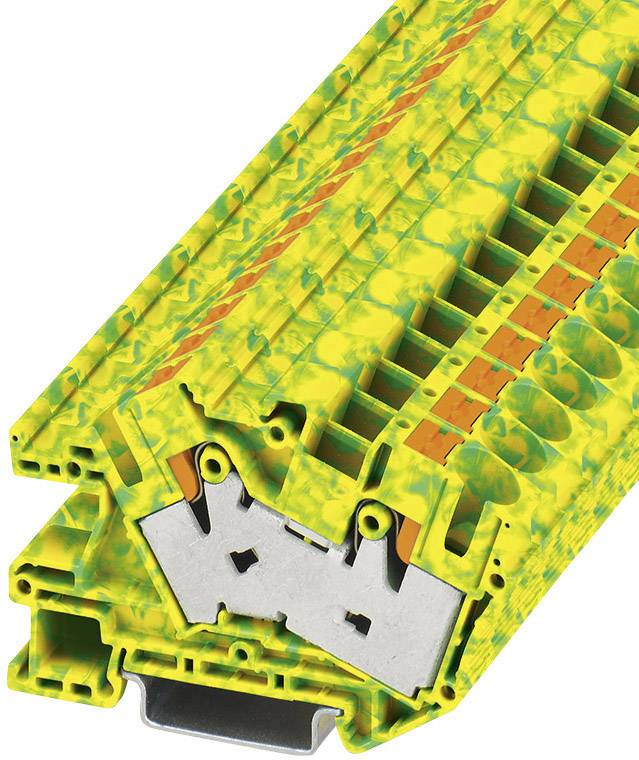

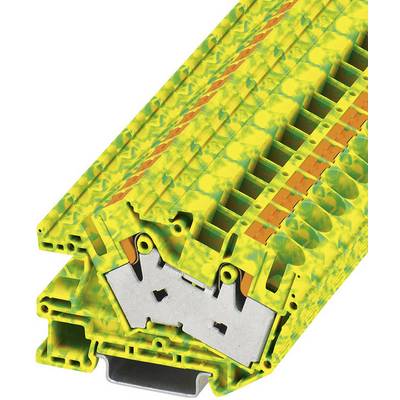

Phoenix Contact 3214024 PG terminal 10.2 mm Pull spring Green, Yellow 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
16 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 4.20 / piece)
€ 252.10
-17 %
€ 210.08
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
PG terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
24
- AWG max.
4
- Clamp width
10.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
500 V
- Stripping length (max.)
18 mm
- Manufacturer part #
3214024
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
PTI 16/S-PE
- Dim
(L x W x H) 77.7 x 10.2 x 49.6 mm
- Width
10.2 mm
- Height
49.6 mm
- Length
77.7 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1563501 Phoenix Contact 3214024 PG terminal 10.2 mm Pull spring Green, Yellow 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1563501 Phoenix Contact 3214024 PG terminal 10.2 mm Pull spring Green, Yellow 50 pc(s) Piece
