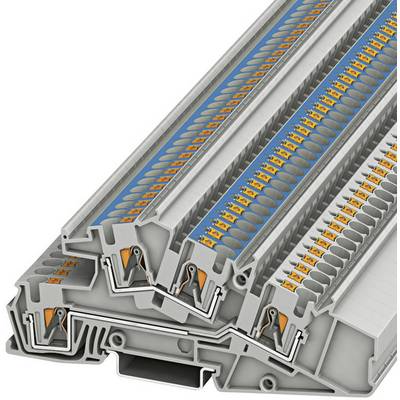

Phoenix Contact 3214051 Triple port continuity 6.2 mm Pull spring Grey 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Triple port continuity
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.77 / piece)
€ 138.65
plus VAT.
Only 1 Set(s) available
Technical specifications
- Packaging type
Piece
- Product type
Triple port continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
3
- Number of pins
4
- Factory colour
Grey
- Nominal current
28 A
- Nominal current - rounded value
28 A
- Nominal voltage
400 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3214051
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
PTI 4-L/N
- Dim
(L x W x H) 114 x 6.2 x 50.5 mm
- Width
6.2 mm
- Height
50.5 mm
- Length
114 mm
- Flammability rating
V0
- Connector colour
Blue
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1563517 Phoenix Contact 3214051 Triple port continuity 6.2 mm Pull spring Grey 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1563517 Phoenix Contact 3214051 Triple port continuity 6.2 mm Pull spring Grey 50 pc(s) Piece
