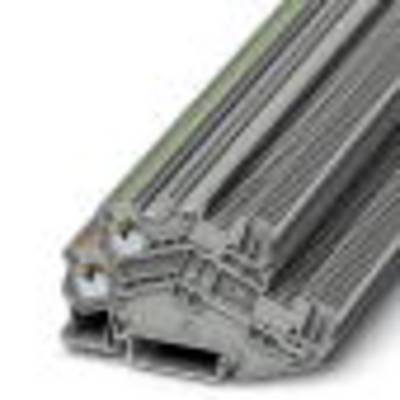

Phoenix Contact 3214496 Dual port terminal 3.5 mm Pull spring Grey 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Dual port terminal
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Number (Package size 50 pc(s))
Total (€ 1.41 / piece)
€ 78.14
-10 %
€ 70.58
plus VAT.
14-day return policy included
Highlights & Details
Multi-level terminal 3214496
- PTTBS 1,5/S/2P/U-OG/O-GN
Technical specifications
- Packaging type
Piece
- Product type
Dual port terminal
- Features
2-tier
- Connection
Pull spring
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- Clamp width
3.5 mm
- No. of rows
2
- Pins per row
2
- Factory colour
Grey
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
500 V
- Manufacturer part #
3214496
- Content
50 pc(s)
- Type
PTTBS 1,5/S/2P/U-OG/O-GN
- Dim
(L x W x H) 78 x 3.5 x 55 mm
- Width
3.5 mm
- Height
55 mm
- Length
78 mm
- Flammability rating
V0
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1831220 Phoenix Contact 3214496 Dual port terminal 3.5 mm Pull spring Grey 50 pc(s) Piece
Description
The Push-in terminals is characterised by the system features in the CLIPLINE complete system by simply and tool-free wiring of conductors with wire end ferrule or fixed conductors. The compact design and the front connection enable a wiring in a confined space. In addition to the test option in the double function shaft are available for all terminals an additional test interface is available.
