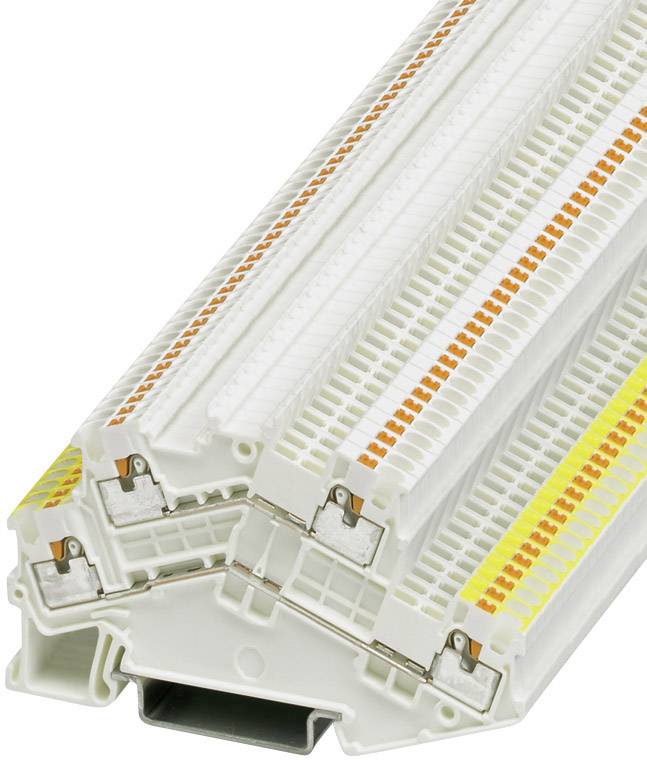

Phoenix Contact 3214661 Dual port continuity 3.5 mm Pull spring Configuration: Double White 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Dual port continuity
Connection
Pull spring
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.34 / piece)
€ 67.22
plus VAT.
14-day return policy included
Highlights & Details
Dualport continuity PTTBS 1.5/S WH/U-YE/O-WH
- PTTBS 1,5/S WH/U-YE/O-WH
Technical specifications
- Packaging type
Piece
- Product type
Dual port continuity
- Connection
Pull spring
- Configuration
Double
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
26
- AWG max.
14
- Clamp width
3.5 mm
- No. of rows
2
- Number of pins
4
- Factory colour
White
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3214661
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
PTTBS 1,5/S WH/U-YE/O-WH
- Dim
(L x W x H) 78.8 x 3.5 x 48.2 mm
- Width
3.5 mm
- Height
48.2 mm
- Length
78.8 mm
- Flammability rating
V0
- Connector colour
Yellow
- Insulation material
PA
- Insulation
PA
- UKCA
yes
