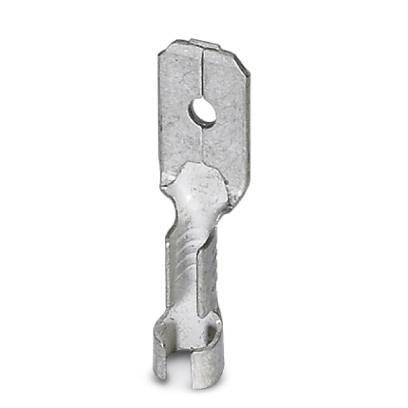

Phoenix Contact 3240161 Blade terminal Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Not insulated Metal 100
EAN:
Part number:
Item no:
Product type
Blade terminal
Connector width
6.3 mm
Connector thickness
0.8 mm
Insulation type
Not insulated
Connection angle
180 °
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 0.21 / piece)
€ 21.00
plus VAT.
Only 9 Set(s) available
Highlights & Details
Connector C-SCM 1,5/6,3X0,8
- Metal
- 6.3 mm x 0.8 mm
- 0.50 mm² - 1.50 mm²
Technical specifications
- Product type
Blade terminal
- Factory colour
Metal
- Connector width
6.3 mm
- Connector thickness
0.8 mm
- Support sleeve
No
- Insulation type
Not insulated
- Connection angle
180°
- Contact material
Copper silver plated
- Content
100 pc(s)
- Manufacturer part #
3240161
- Type
C-SCM 1,5/6,3X0,8
- max. cross section
1.50 mm²
- Min. cross section
0.50 mm²
- Industrial packaging
Yes
- Cross-section range
0.50 - 1.50 mm²
- RoHS-compliant
Yes
- Size
6.3 x 0.8 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 715291 Phoenix Contact 3240161 Blade terminal Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Not insulated Metal 100
User & Safety Instructions
User & Safety Instructions 715291 Phoenix Contact 3240161 Blade terminal Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Not insulated Metal 100
Description
Flat connector, non-insulated, 0.5 - 1.5 mm², 6.3 x 0.8
