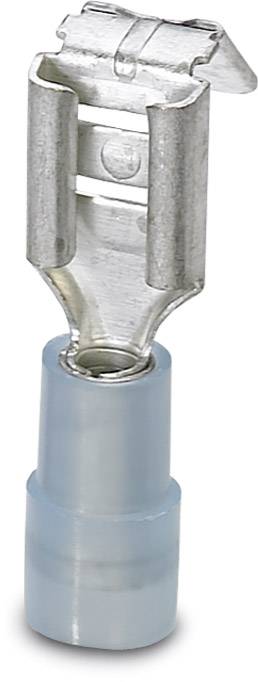

Phoenix Contact 3240530 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated B
EAN:
Part number:
Item no:
Product type
Blade receptacle
Connector width
6.3 mm
Insulation type
Partially insulated
Content
50 pc(s)
max. cross section
2.50 mm²
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 50 pc(s))
Total (€ 0.39 / piece)
€ 19.32
plus VAT.
Only 1 Set(s) available
Highlights & Details
Connector C-SCFMI 2,5/6,3X0,8
- Blue
- 6.3 mm x 0.8 mm
- 1.50 mm² - 2.50 mm²
Technical specifications
- Product type
Blade receptacle
- Connector width
6.3 mm
- Factory colour
Blue
- Connector thickness
0.8 mm
- Insulation type
Partially insulated
- Connection angle
180°
- Contact material
Brass tin plated
- Content
50 pc(s)
- max. cross section
2.50 mm²
- Min. cross section
1.50 mm²
- Manufacturer part #
3240530
- Industrial packaging
Yes
- Insulation material
PVC
- Cross-section range
1.50 - 2.50 mm²
- Size
6.3 x 0.8 mm
- Type
C-SCFMI 2,5/6,3X0,8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 587885 Phoenix Contact 3240530 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated B
User & Safety Instructions
User & Safety Instructions 587885 Phoenix Contact 3240530 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated B
Description
Flat plug distributor, isolated, blue, 1.5 - 2.5 mm², for plug and sleeve 6.3 x 0.8 mm
