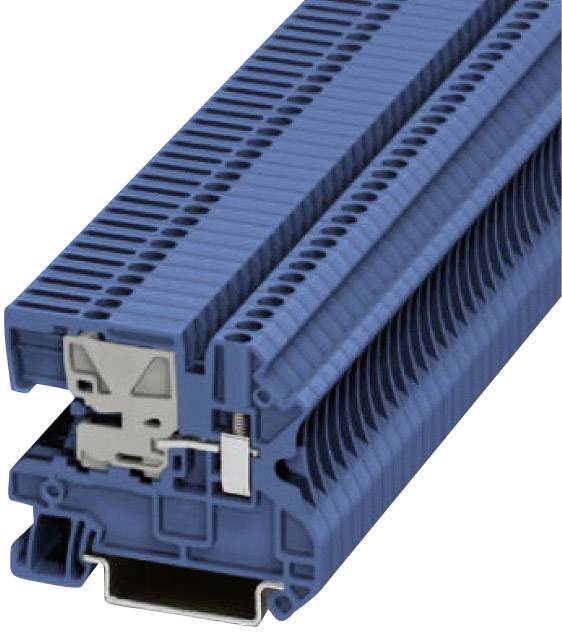

Phoenix Contact 3245011 N terminal 5.2 mm Screws Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
25
11% = € 0.31
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
14-day return policy included
Technical specifications
- Load current 24 A at 4 mm ² cross section
- Product type
N terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
250 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3245011
- Content
1 pc(s)
- Industrial packaging
No
- Type
UTN 2,5
- Dim
(L x W x H) 55 x 5.2 x 47.5 mm
- Width
5.2 mm
- Height
47.5 mm
- Length
55 mm
- Weight
0.01
- Flammability rating
V0
- Nominal voltage (details)
250 V
- Nominal current (details)
24 A
- Connection
-
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 733218 Phoenix Contact 3245011 N terminal 5.2 mm Screws Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 733218 Phoenix Contact 3245011 N terminal 5.2 mm Screws Blue 1 pc(s)
Description
All UTN neutral isolation terminals are equipped with a screwless slide gate valves. The locking of the slider in the end positions offers additional protection against accidental actuation. The UTN isolation terminals are same in shape for the UT standard terminals
