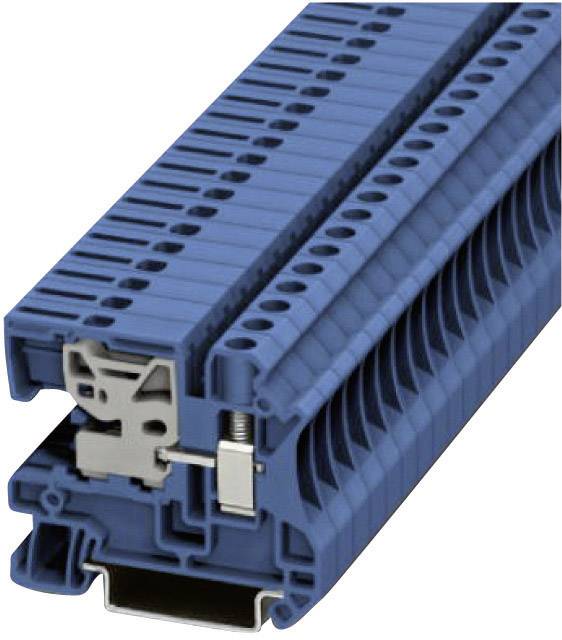

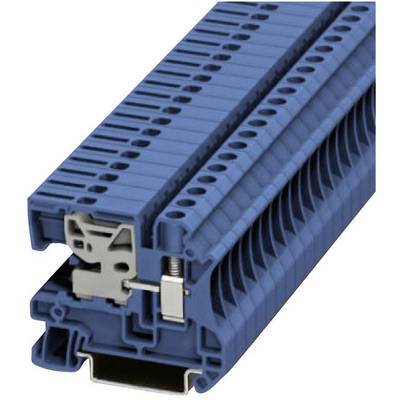

Phoenix Contact 3245037 N terminal 8.2 mm Screws Configuration: N Blue 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Load current 41 A with 4 mm² cross-section conductor
- Packaging type
Piece
- Product type
N terminal
- Features
with screw connection
- Connection
Screws
- Configuration
N
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
24
- AWG max.
8
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
1
- Factory colour
Blue
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
400 V
- Stripping length (max.)
10 mm
- Manufacturer part #
3245037
- Content
1 pc(s)
- Industrial packaging
No
- Type
UTN 6
- Dim
(L x W x H) 55 x 8.2 x 47.5 mm
- Width
8.2 mm
- Height
47.5 mm
- Length
55 mm
- Weight
0.02
- Flammability rating
V0
- Connector colour
Blue
- Nominal voltage (details)
400 V
- Nominal current (details)
41 A
- Connection
-
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 733251 Phoenix Contact 3245037 N terminal 8.2 mm Screws Configuration: N Blue 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 733251 Phoenix Contact 3245037 N terminal 8.2 mm Screws Configuration: N Blue 1 pc(s) Piece
Description
All UTN neutral isolation terminals are equipped with a screwless slide gate valves. The locking of the slider in the end positions offers additional protection against accidental actuation. The UTN isolation terminals are same in shape for the UT standard terminals
