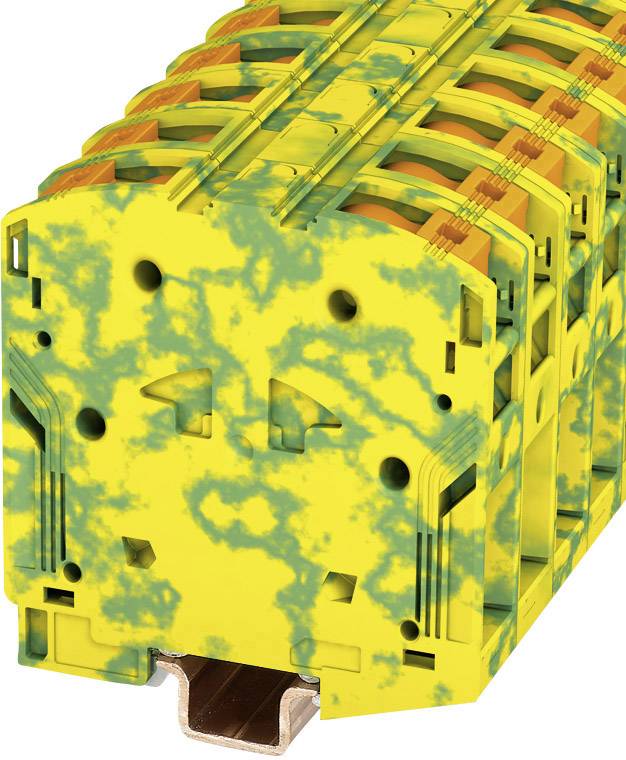

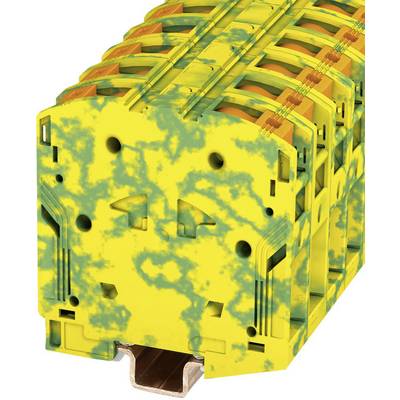

Phoenix Contact 3260052 PG terminal 20 mm Spring-loaded terminal Green, Yellow 10 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Spring-loaded terminal
Cross section (flexible) (max.)
70 mm²
Cross section (inflexible) (max.)
70 mm²
Content
10 pc(s)
Datasheet (PDF)
587 Set(s)
Sales and shipping:
Number (Package size 10 pc(s))
Total (€ 28.99 / piece)
€ 340.34
-15 %
€
Highlights & Details
Earth conductor terminal PTPOWER 50-PE
- PTPOWER 50-PE
Technical specifications
- Product type
PG terminal
- Connection
Spring-loaded terminal
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
70 mm²
- Cross section (inflexible) (min.)
10 mm²
- Cross section (inflexible) (max.)
70 mm²
- AWG (min.)
8
- AWG max.
2
- Clamp width
20 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
Yellow
- Stripping length (max.)
30 mm
- Manufacturer part #
3260052
- Content
10 pc(s)
- Industrial packaging
Yes
- Type
PTPOWER 50-PE
- Dim
(L x W x H) 101 x 20 x 105 mm
- Width
20 mm
- Height
105 mm
- Length
101 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 1563508 Phoenix Contact 3260052 PG terminal 20 mm Spring-loaded terminal Green, Yellow 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1563508 Phoenix Contact 3260052 PG terminal 20 mm Spring-loaded terminal Green, Yellow 10 pc(s)
