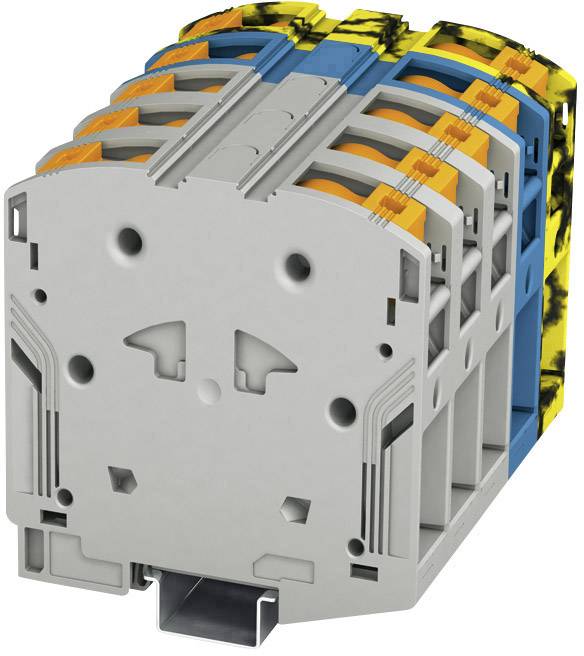

Phoenix Contact 3260054 High power terminal 80 mm Spring-loaded terminal Grey, Blue 3 pc(s)
EAN:
Part number:
Item no:
Product type
High power terminal
Connection
Spring-loaded terminal
Cross section (flexible) (max.)
70 mm²
Cross section (inflexible) (max.)
70 mm²
Nominal current - rounded value
150 A
Datasheet (PDF)
Number (Package size 3 pc(s))
Total (€ 40.61 / piece)
€ 121.84
plus VAT.
Only 9 Set(s) available
Technical specifications
- Product type
High power terminal
- Connection
Spring-loaded terminal
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
70 mm²
- Cross section (inflexible) (min.)
10 mm²
- Cross section (inflexible) (max.)
70 mm²
- Clamp width
80 mm
- No. of rows
1
- Number of pins
8
- Factory colour
Grey
Blue
- Nominal current
150 A
- Nominal current - rounded value
150 A
- Nominal voltage
1500 V
- Stripping length (max.)
30 mm
- Manufacturer part #
3260054
- Content
3 pc(s)
- Industrial packaging
Yes
- Type
PTPOWER 50-3L/N
- Dim
(L x W x H) 101 x 80 x 105 mm
- Width
80 mm
- Height
105 mm
- Length
101 mm
- Flammability rating
V0
- UKCA
yes
