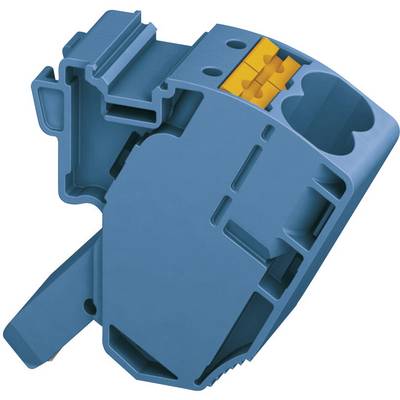

Phoenix Contact 3260148 Clip terminal 18.5 mm Quick-connect Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Clip terminal
Connection
Quick-connect
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
57 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Read-off terminal AGK 10-PTPOWER BU
- AGK 10-PTPOWER BU
Technical specifications
- Product type
Clip terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
8
- Clamp width
18.5 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
1500 V
- Stripping length (max.)
18 mm
- Manufacturer part #
3260148
- Content
1 pc(s)
- Industrial packaging
No
- Type
AGK 10-PTPOWER BU
- Dim
(L x W x H) 35 x 18.5 x 34.7 mm
- Width
18.5 mm
- Height
34.7 mm
- Length
35 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation class
I
- Insulation
PA
- Material
Polyamide
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 556383 Phoenix Contact 3260148 Clip terminal 18.5 mm Quick-connect Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 556383 Phoenix Contact 3260148 Clip terminal 18.5 mm Quick-connect Blue 1 pc(s)
Description
Simple and easy to plug is now also for large conductor. With the high-current terminal PTPOWER95 with push-co-circuit can be conductors up to 95 mm² to be contacted directly. Plugged In directly without the need to manually open the clamping point. To release the conductor simply the unlock button with a standard screwdriver. For the simple potential distribution are jumpers available.
