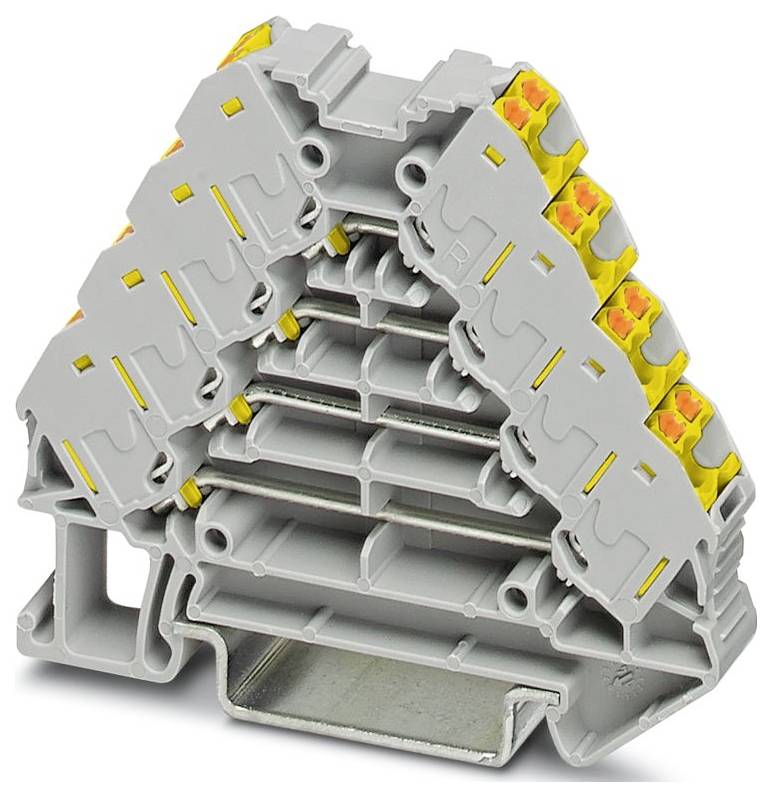

Phoenix Contact 3270123 Shunt distributor Push-in connector Grey 10 pc(s)
EAN:
Part number:
Item no:
Product type
Shunt distributor
Connection
Push-in connector
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
10 A
Datasheet (PDF)
Highlights & Details
- PTRV 4 /YE
Technical specifications
- Product type
Shunt distributor
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- No. of rows
4
- Factory colour
Grey
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
250 V
- Manufacturer part #
3270123
- Content
10 pc(s)
- Type
PTRV 4 /YE
- Dim
(W x H x D) 8.3 x 64 x 55.5 mm
- Width
8.3 mm
- Height
64 mm
- Flammability rating
V0
- Connector colour
Yellow
- Depth
55.5 mm
- UKCA
yes
