Phoenix Contact 3270140 Shunt distributor 8.3 mm Pull spring Grey 10 pc(s)
EAN:
Part number:
Item no:
Product type
Shunt distributor
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
8 A
Number (Package size 10 pc(s))
Total (€ 12.60 / piece)
€ 126.04
plus VAT.
Only 3 Set(s) available
Technical specifications
- Product type
Shunt distributor
- Features
+ push-in spring bracket
- Connection
Pull spring
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- Clamp width
8.3 mm

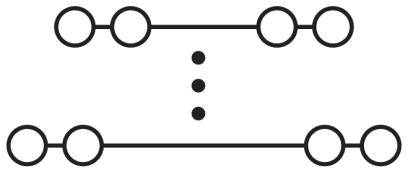

- No. of rows
8
- Pins per row
4
- Factory colour
Grey
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Nominal voltage
250 V
- Manufacturer part #
3270140
- Content
10 pc(s)
- Type
PTRV 8 /GY
- Dim
(L x W x H) 100 x 8.3 x 87.5 mm
- Width
8.3 mm
- Height
87.5 mm
- Length
100 mm
- Flammability rating
V0
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1831488 Phoenix Contact 3270140 Shunt distributor 8.3 mm Pull spring Grey 10 pc(s)
Description
High contact quality by push-in Technology as a replacement for wire wrap, termi-point, etc. individual color assignment of conductor and clamping point to error-free, safe working. Tool-free wiring in a confined space by compact size.
