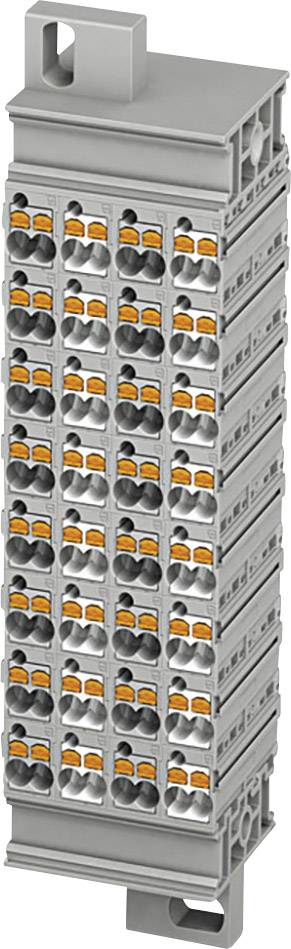

Image similar

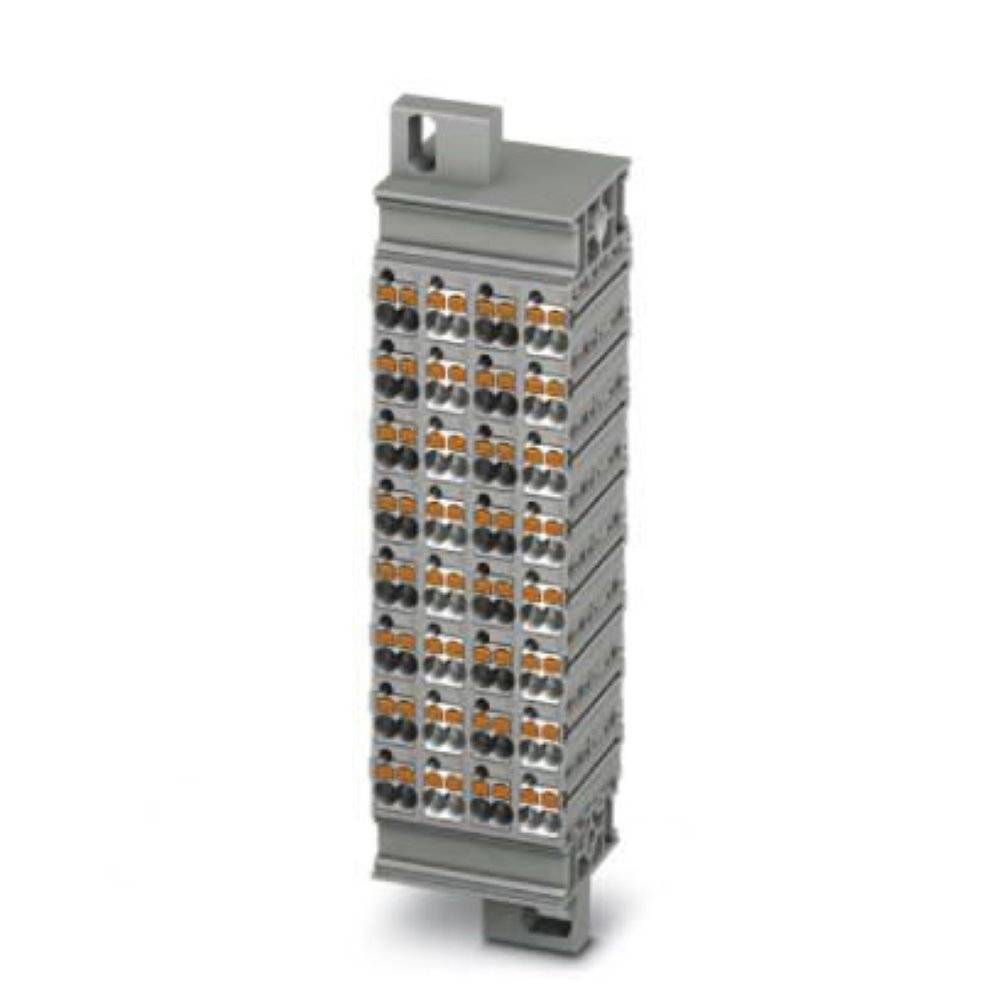

Image similar

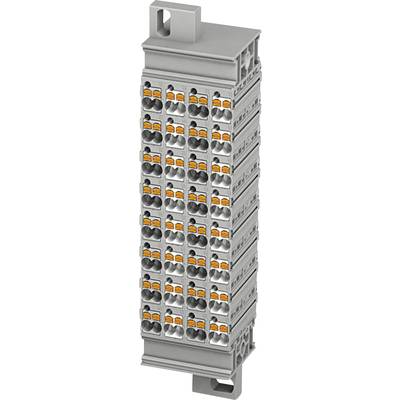

Phoenix Contact 3270316 Shunt terminal array Pull spring Grey 24 pc(s)
EAN:
Part number:
Item no:
Product type
Shunt terminal array
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
Number (Package size 24 pc(s))
Total (€ 42.54 / piece)
€ 1,200.84
-15 %
€ 1,021.01
plus VAT.
Technical specifications
- Imprint 1 - 32
- Installation type: wall mounting, 19" rack
- Color: Connection Elements: gray/white
- Product type
Shunt terminal array
- Connection
Pull spring
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
26
- AWG max.
12
- No. of rows
4
- Pins per row
32
- Number of pins
128
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V AC
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3270316
- Content
24 pc(s)
- Industrial packaging
Yes
- Type
PTMC 1,5/32-2H 19Z
- Dim
(W x H) 34.40 mm x 111 mm
- Width
34.40 mm
- Height
111 mm
