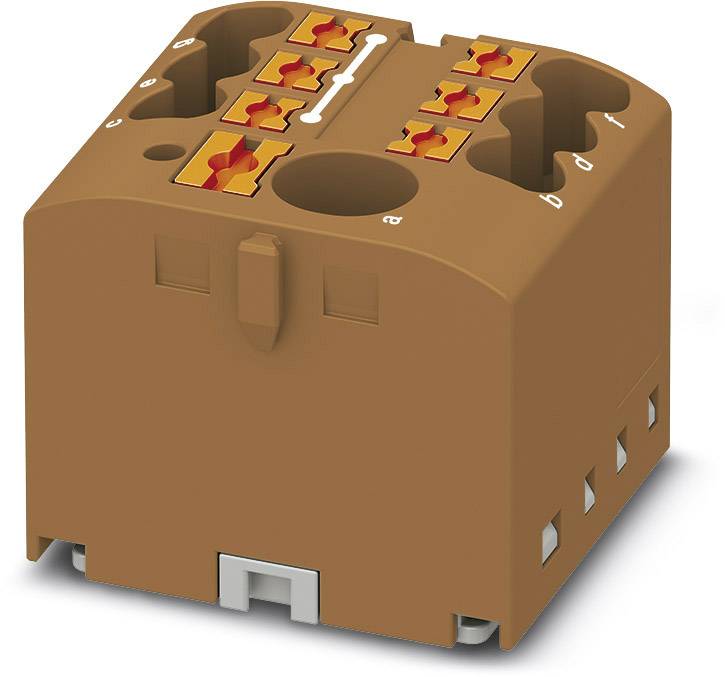

Phoenix Contact 3273340 Distribution block 25.2 mm Pull spring Brown 10 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Distribution block
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Number (Package size 10 pc(s))
Total (€ 3.87 / piece)
€ 38.65
plus VAT.
14-day return policy included
Highlights & Details
Distributor block 3273340
- PTFIX 6/6X2,5 BN
Technical specifications
- Packaging type
Piece
- Product type
Distribution block
- Features
+ push-in spring bracket
- Connection
Pull spring
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- Clamp width
25.2 mm
- No. of rows
1
- Pins per row
7
- Factory colour
Brown
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Manufacturer part #
3273340
- Content
10 pc(s)
- Type
PTFIX 6/6X2,5 BN
- Dim
(L x W x H) 28.2 x 25.2 x 21.2 mm
- Width
25.2 mm
- Height
21.2 mm
- Length
28.2 mm
- Flammability rating
V0
- Connector colour
Brown
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1831625 Phoenix Contact 3273340 Distribution block 25.2 mm Pull spring Brown 10 pc(s) Piece
Description
Up to 80% time advantage through assembly-finished blocks without manual bridging. Time-saving conductor connection by tool-free push-in direct plug-in technique. Unique wiring by eleven different color variants. Flexible use through rail mounting, direct mounting or sticking. Up to 50% space savings on the rail through cross-mounting.
