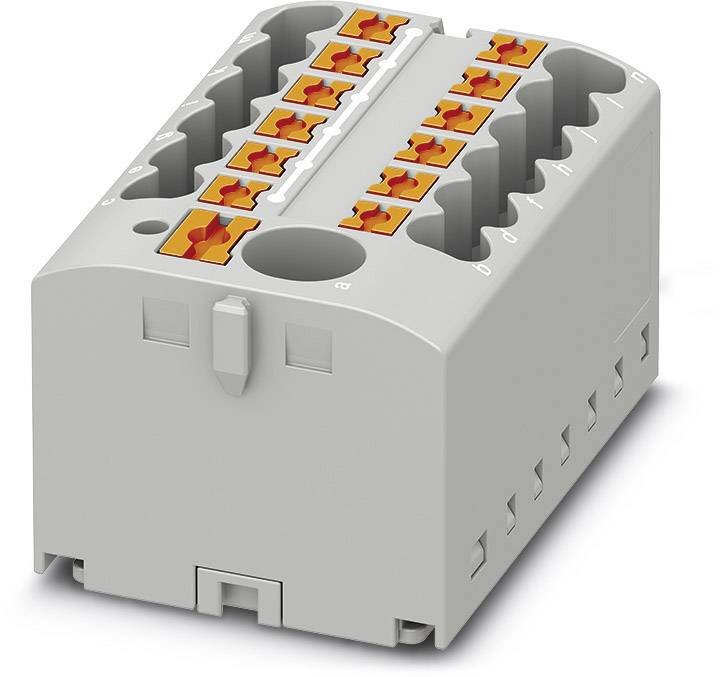

Phoenix Contact 3273352 Distribution block 40.6 mm Pull spring Grey 8 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Number (Package size 8 pc(s))
Total (€ 6.51 / piece)
€ 52.09
plus VAT.
Only 2 Set(s) available
Highlights & Details
Distributor block 3273352
- PTFIX 6/12X2,5 GY
Technical specifications
- Product type
Distribution block
- Features
+ push-in spring bracket
- Connection
Pull spring
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- Clamp width
40.6 mm
- No. of rows
1
- Pins per row
13
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Manufacturer part #
3273352
- Content
8 pc(s)
- Type
PTFIX 6/12X2,5 GY
- Dim
(L x W x H) 28.2 x 40.6 x 21.2 mm
- Width
40.6 mm
- Height
21.2 mm
- Length
28.2 mm
- Flammability rating
V0
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1831629 Phoenix Contact 3273352 Distribution block 40.6 mm Pull spring Grey 8 pc(s)
Description
Up to 80% time advantage through assembly-finished blocks without manual bridging. Time-saving conductor connection by tool-free push-in direct plug-in technique. Unique wiring by eleven different color variants. Flexible use through rail mounting, direct mounting or sticking. Up to 50% space savings on the rail through cross-mounting.
