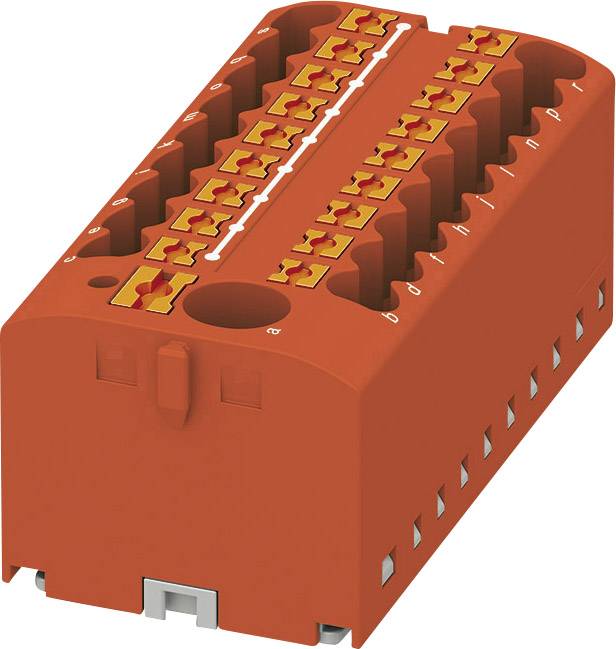

Phoenix Contact 3273378 Distribution block 56 mm Pull spring Red 8 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Number (Package size 8 pc(s))
Total (€ 8.82 / piece)
€ 70.58
plus VAT.
14-day return policy included
Technical specifications
- Product type
Distribution block
- Features
built-in jumper
- Connection
Pull spring
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- Clamp width
56 mm
- No. of rows
1
- Pins per row
19
- Factory colour
Red
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Manufacturer part #
3273378
- Content
8 pc(s)
- Type
PTFIX 6/18X2,5 RD
- Dim
(L x W x H) 28.2 x 56.5 x 21.2 mm
- Width
56.5 mm
- Height
21.2 mm
- Length
28.2 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1831639 Phoenix Contact 3273378 Distribution block 56 mm Pull spring Red 8 pc(s)
Description
Phoenix PTFIX 6/18 X2.5 RD. Width: 56 mm, Depth: 28.2 mm, Height: 21.2 mm. Rated voltage 500 V
