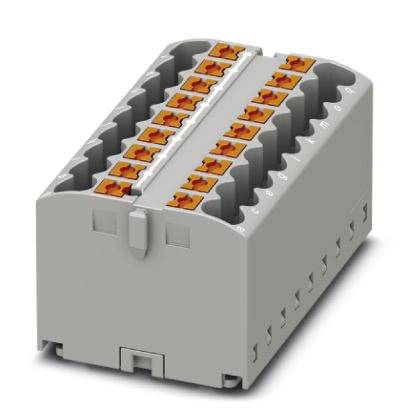

Phoenix Contact 3273438 Grey 8 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Factory colour
Grey
AWG max.
12
Stripping length
8 mm
Stripping length (max.)
10 mm
Datasheet (PDF)
Technical specifications
- Flammability class according to UL 94: V0
- Width 46.9 mm
- Number of floors: 1
- Number of connections: 18

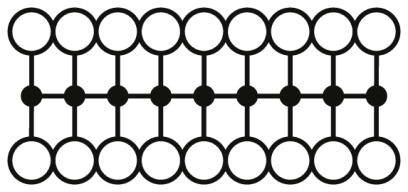

- Potential: 1
- Insulating material: PA
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Over voltage category III
- Insulating material group: I
- Maximum power loss at rated condition: 0.77 W (the value refers to a terminal block and is multiplied depending on the terminal assignment)
- Maximum load current 32 A.
- Open side wall: No.
- Total current max. 48 A.
- Packaging type
Piece
- Factory colour
Grey
- AWG max.
12
- Stripping length
8 mm
- Stripping length (max.)
10 mm
- Dim
(L x W) 28.6 mm x 46.9 mm
- Connection
Push-in connector
- Connector colour
Grey
- Manufacturer part #
3273438
- Content
8 pc(s)
- Material
Polyamide
- Nominal voltage
450 V
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Number of pins
18
- Width
46.9 mm
- Length
28.6 mm
- Type
PTFIX 18X2,5-G GY
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2226062 Phoenix Contact 3273438 Grey 8 pc(s)
Datasheet 2226062 Phoenix Contact 3273438 Grey 8 pc(s)
User & Safety Instructions
User & Safety Instructions 2226062 Phoenix Contact 3273438 Grey 8 pc(s)
Description

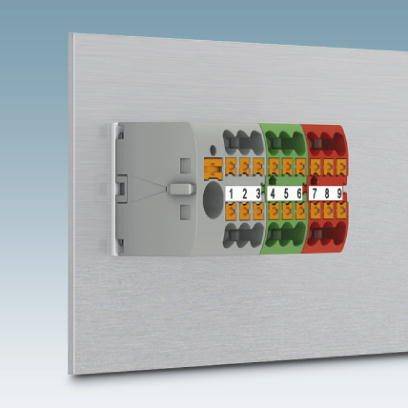

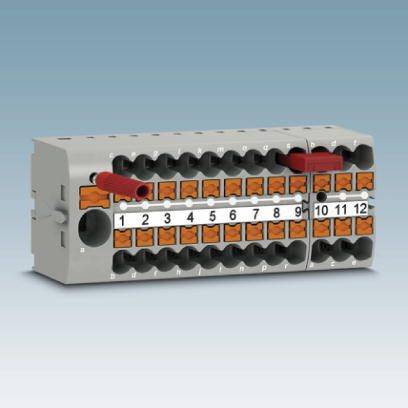

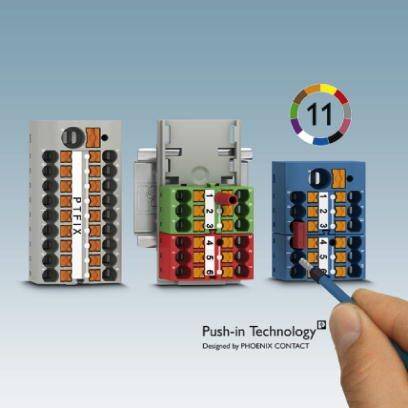

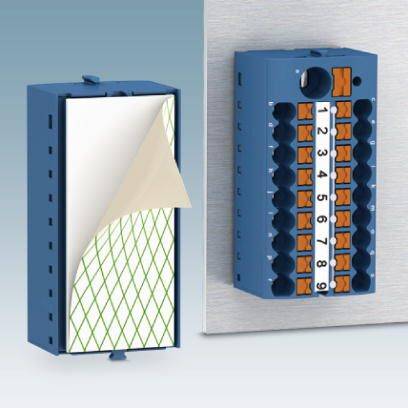

Up to 80% time advantage through ready-to-assemble blocks without manual bridging. Time-saving conductor connection through tool-free push-in direct plug technology. Clear wiring through eleven different color variants. Flexible use through rail mounting, direct mounting or sticking. Up to 50% space saving on the mounting rail through cross-mounting.
