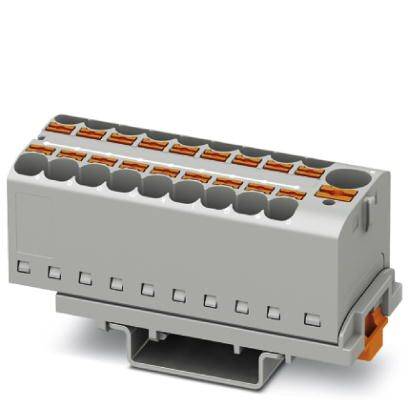

Phoenix Contact 3273636 Grey 8 pc(s)
EAN:
Part number:
Item no:
Factory colour
Grey
AWG max.
10
Stripping length
10 mm
Stripping length (max.)
12 mm
Dim
(L x W) 58.1 mm x 28.6 mm
Datasheet (PDF)
Technical specifications
- Flammability class according to UL 94: V0
- Width 28.6 mm
- Number of floors: 1

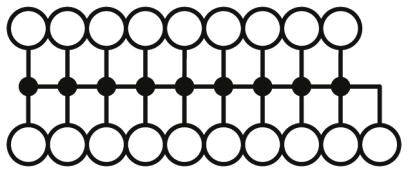

- Number of connections: 19
- Potential: 1
- Insulating material: PA
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Over voltage category III
- Insulating material group: I
- Maximum load current 63 A.
- Open side wall: No.
- Connection: Feed floor
- Total current max. 63 A.
- Factory colour
Grey
- AWG max.
10
- Stripping length
10 mm
- Stripping length (max.)
12 mm
- Dim
(L x W) 58.1 mm x 28.6 mm
- Connection
Push-in connector
- Manufacturer part #
3273636
- Content
8 pc(s)
- Nominal voltage
800 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Width
28.6 mm
- Length
58.1 mm
- Type
PTFIX 10/18X4-NS35 GY
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2226072 Phoenix Contact 3273636 Grey 8 pc(s)
Datasheet 2226072 Phoenix Contact 3273636 Grey 8 pc(s)
User & Safety Instructions
User & Safety Instructions 2226072 Phoenix Contact 3273636 Grey 8 pc(s)
Description
Distributor block, nominal voltage 800 V, nominal current 32 A, connection type: Push-in connection, push-in connection, number of connections: 19, cross-section: 0.2 mm² - 6 mm², AWG: 24 - 10, width: 28.6 mm, color: Gray, mounting type: NS 35/7.5, NS 35/15
