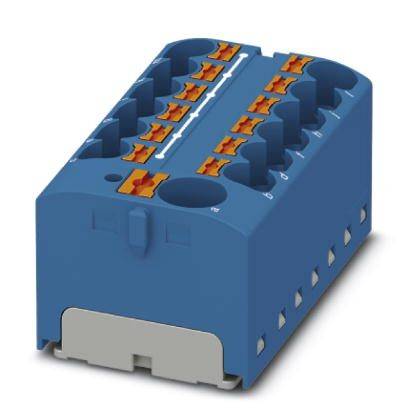

Phoenix Contact 3273880 Blue 8 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Factory colour
Blue
AWG max.
10
AWG (min.)
24
Stripping length
10 mm
Datasheet (PDF)
Technical specifications
- Flammability class according to UL 94: V0
- Width: 46.3 mm
- Number of floors: 1
- Number of connections: 13
- Potential: 1
- Insulating material: PA
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Over voltage category III
- Insulating material group: I
- Maximum load current 41 A.
- Open side wall: No.
- Connection: Feed floor
- Total current max. 63 A.
- Packaging type
Piece
- Factory colour
Blue
- AWG max.
10
- AWG (min.)
24
- Stripping length
10 mm
- Stripping length (max.)
12 mm
- Dim
(L x W x H) 28.6 x 46.3 x 21.7 mm
- Connection
Push-in connector
- Manufacturer part #
3273880
- Content
8 pc(s)
- Clamp width
46.3 mm
- Material
PA
- Nominal voltage
450 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Number of pins
13
- Width
46.3 mm
- Height
21.7 mm
- Length
28.6 mm
- Type
PTFIX 10/12X4 BU
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2226084 Phoenix Contact 3273880 Blue 8 pc(s)
Datasheet 2226084 Phoenix Contact 3273880 Blue 8 pc(s)
User & Safety Instructions
User & Safety Instructions 2226084 Phoenix Contact 3273880 Blue 8 pc(s)
Description
Distributor block, nominal voltage: 450 V, nominal current: 32 A, connection type: Push-in connection, push-in connection, number of connections: 13, cross-section: 0.2 mm² - 6 mm², AWG: 24 - 10, width: 46.3 mm, height: 21.7 mm, color: Blue, mounting type: Snap-on mounting rail adapter
