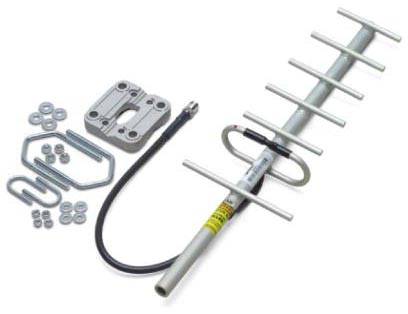

Antenna with multiple elements, cable, and mounting hardware. Suitable for technical applications or signal amplification.

Image similar

Antenna with multiple elements, cable, and mounting hardware. Suitable for technical applications or signal amplification.

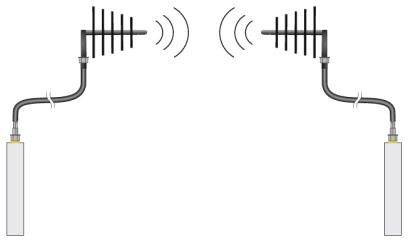

'Two aerials with radio wave symbols facing each other, representing data transmission.'

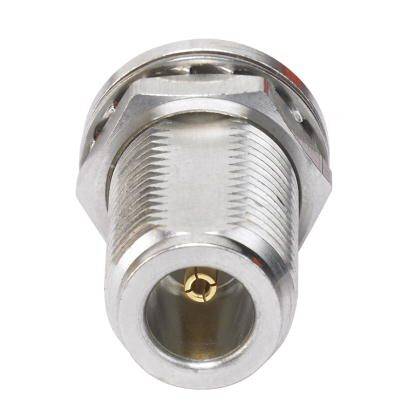

Round metal plug with a ribbed surface and a central metal pin, suitable for electrical connections.

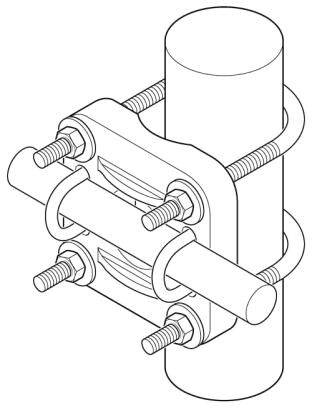

A schematic drawing shows a pipe connection, secured with two U-bolts that pass through a plate and are fastened with nuts.

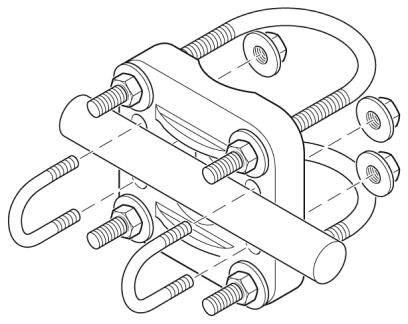

Technical drawing of a mounting bracket with screws and U-clamp for securing a cylindrical object, such as a pipe, to a flat surface.

1/5

Image similar

Phoenix Contact

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

IP65 rating
Ambient temperature (operation): -40 °C ... 80 °C
Horizontal opening angle 56 °
Vertical opening angle 46 °
Polarization: Linear vertical or horizontal
Impedance 50 Ω
Connection type: N (female) with cable (0.6 m)
Material: Aluminum (antenna housing) / V2A (bracket) / V2A (U-screw)
Mounting type: Mast mounting
Outer diameter: 32 mm ... 60 mm (mast)
With connection cable: Yes

Product type: Antenna

Type: RAD-ISM-900-ANT-YAGI-10-N

Manufacturer part #: 5606614

Dim: (L x W x H) 609.6 x 60.5 x 172 mm

Width: 60.5 mm

Height: 172 mm

Length: 609.6 mm

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2226103 Phoenix Contact 5606614 Antenna

Datasheet 2226103 Phoenix Contact 5606614 Antenna

User & Safety Instructions

User & Safety Instructions 2226103 Phoenix Contact 5606614 Antenna

Description

For long distances. For point-to-point connections.
