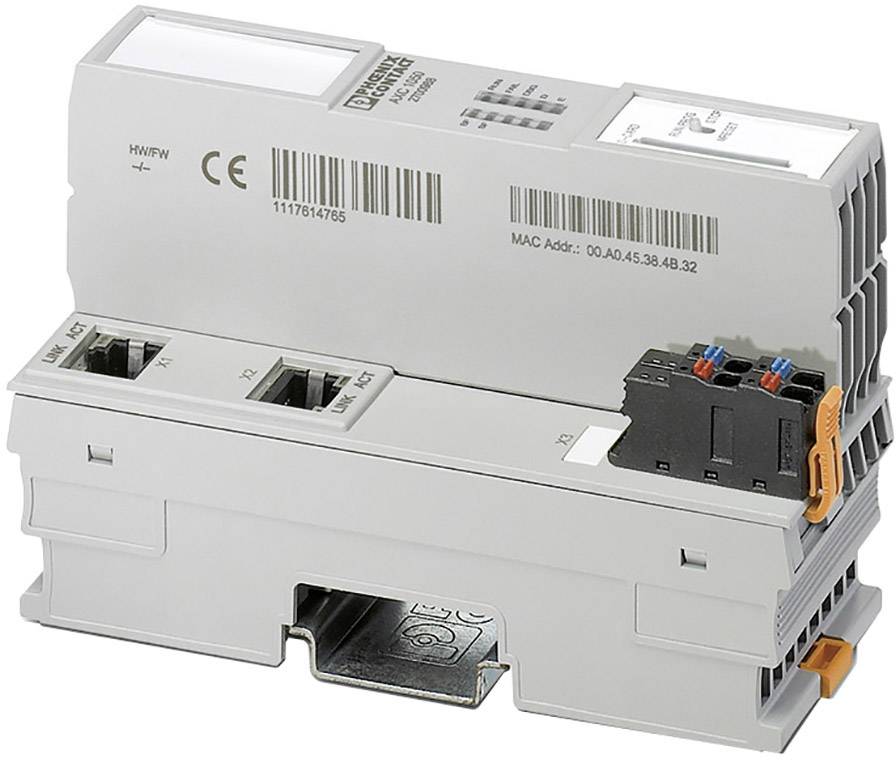

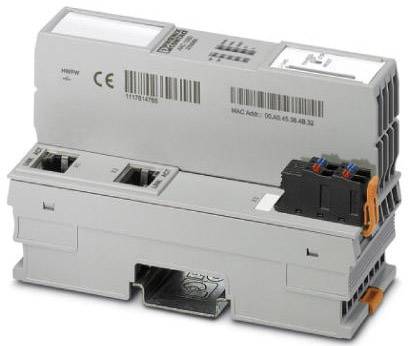

Phoenix Contact AXC 1050 2700988 PLC controller
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PLC controller unit
- AXC 1050 – perfect for decentralized automation
Technical specifications
- Product type
PLC controller
- Interfaces
Axioline F-Local bus
- Min. operating voltage
19.2 V DC
- Height
126.10 mm
- Length
74 mm
- Width
45 mm
IP20
- Dim

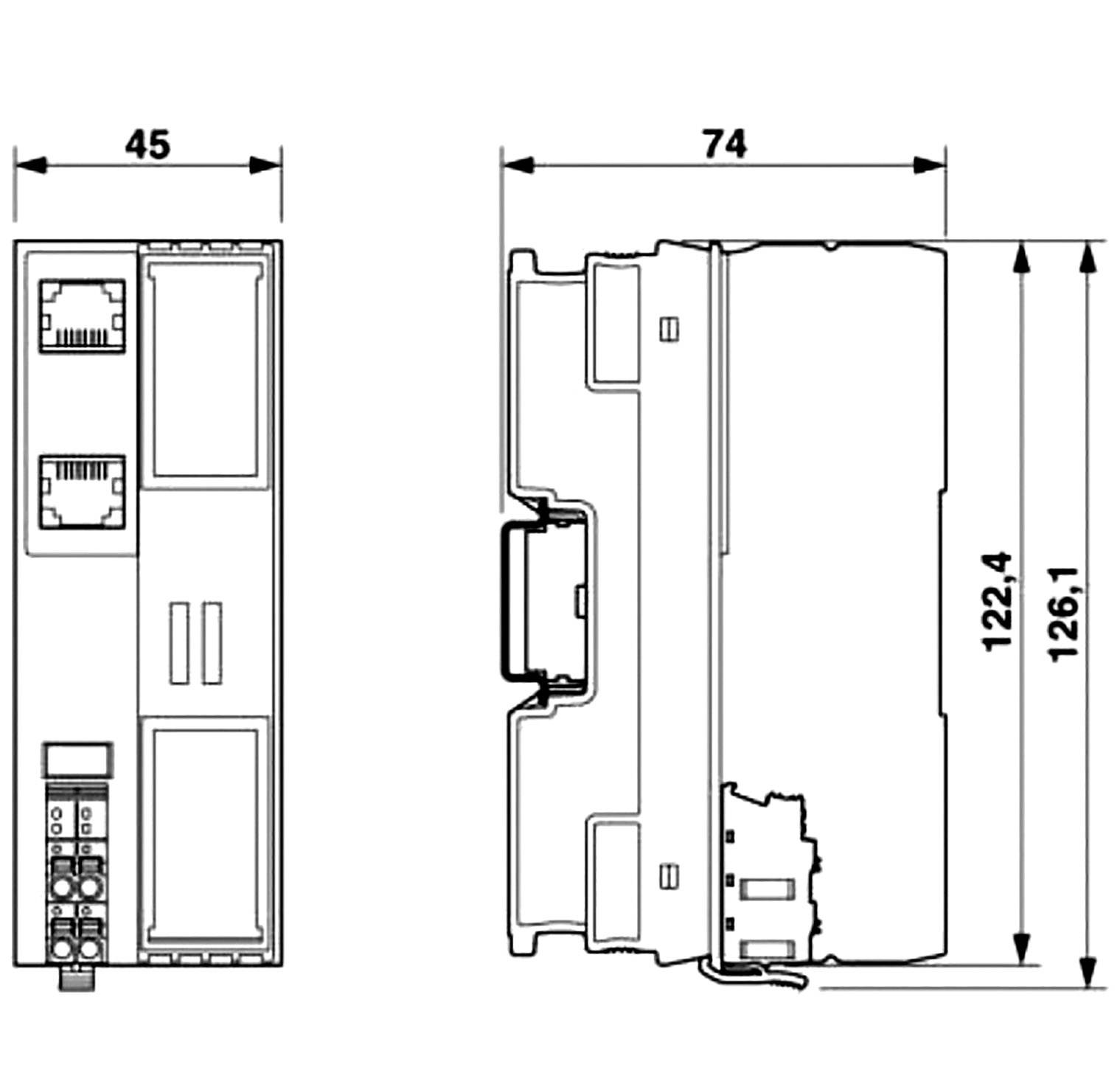

(L x W x H) 74 x 45 x 126.10 mm
- Connection
RJ45, auto-negotiation
- Display
No
- Manufacturer part #
2700988
- Type
AXC 1050
- Processing speed
100 Mbit/s
- Program memory
2 MByte
kB
- Fitting type (details)
Top-hat rail
- Real-time clock
Yes
- Data remanence memory
48 KB (NVRAM)
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
- Operating voltage
19.2 - 30 V DC
- Max. operating voltage
30 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2194788 Phoenix Contact AXC 1050 2700988 PLC controller
Datasheet 2194788 Phoenix Contact AXC 1050 2700988 PLC controller
User & Safety Instructions
User & Safety Instructions 2194788 Phoenix Contact AXC 1050 2700988 PLC controller
Description
The average power class of the Axiocontrol family is the AXC 1050. It is consistently tailored to ease of use and use in harsh industrial environments. Together with the Axioline F I/O system, it offers sufficient processing speed thanks to its direct bus connection.
Fast:
The USB port provides quick access, e.g. for diagnostics
Robust:
With integrated uninterruptible power supply and EMC-proof housing
Simple:
Save wiring time with push-in connection technology
This text is machine translated.
Fast:
The USB port provides quick access, e.g. for diagnostics
Robust:
With integrated uninterruptible power supply and EMC-proof housing
Simple:
Save wiring time with push-in connection technology
This text is machine translated.
