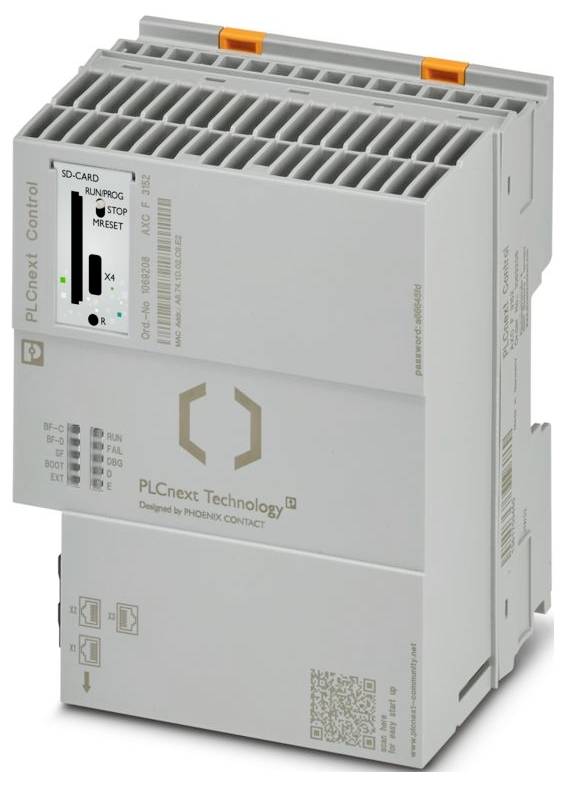

Phoenix Contact AXC F 3152 1069208 Controller 24 V DC, 5 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: PLCnext Control
- Modular design
- USB type C connection type
- Conductor cross-section flexible: 0.2 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 1.5 mm².
- Wire cross-section AWG: 24 ... 16
- Width 100 mm
- Height: 126.93 mm
- Depth: 75 mm
- Ambient conditions: Environmental conditions
- Protection type IP20 (manufacturer specification, no evaluation by UL)
- Ambient temperature (operation): -25 °C ... 60 °C to 2000 m üNN (observe derating);-25 °C ... 55 °C to 3000 m üNN (observe derating);55 °C (at max. 1 A at UBus);55 °C ... 60 °C (only in conjunction with an Axioline F-refill module AXL F PWR 1H (no. 2688297));-40 °C ... 70 °C (Extended, see chapter "Successfully tested: Use under extreme environmental conditions" in the User's Manual)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level: 2
- Permissible air humidity (operation): 5 % ... 95 % (according to DIN EN 61131-2)
- Shock (operation): 30g (according to EN 60068-2-27/IEC 60068-2-27)
- Vibration (operation): 5g (according to EN 60068-2-6/IEC 60068-2-6)
- Stripped length: 8 mm
- ATEX
- IECEx: IECEx
- Transmission speed 10/100/1000 MBit/s
- Identification: CULus
- UL, USA / Canada: UL, USA / Canada
- Maximum power loss at rated conditions 10 W (10 W = 15 W - 5 W )
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Number of interfaces: 3
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m üNN)
- Ethernet: Ethernet
- Bus system USB
- Transfer length: Max. 100 m.
- Supply voltage range: 19.2 V DC ... 30 V DC (including all tolerances, including ripple (± 5 %))
- E238705
- Permissible humidity (storage/transport): 5 % ... 95 % (according to DIN EN 61131-2)
- Note for application: Only for industrial use
- Current consumption: Max. 650 mA (with 1 A at UBus for the I/Os and UL = 24 V)
- Function: Function
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Protection circuit: Overvoltage protection | electronic;reverse polarity protection | electronic
- Supported protocols: HTTP;HTTPS;PROFINET;INTERBUS;Modbus/TCP (via corresponding library);Modbus/RTU (via corresponding library);Ethernet/IP (adapter);CANopen® APP (via corresponding library);DALI (via corresponding library);DALI-2 (via corresponding APP);HART (via corresponding library);corresponding library via SNMP OPC 60870-5-1; corresponding library via SNMP); corresponding library via SNMP OPC (via corresponding library);IEC 60870-5-104 (via corresponding library);IPsec;syslog
- Transfer Physics: Ethernet in RJ45-Twisted-Pair
- Colour (housing): Grey (RAL 7042)
- Air pressure (storage/transport): 58 kPa ... 106 kPa (up to 4500 m üNN)
- Connection type note: Device interface only
- Number of process data: Max. 1482 bytes (per station (total input and output data));max. 1024 bytes (Axioline F local bus (input));max. 1024 bytes (Axioline F-Local Bus (Output))
- Device ID: 0158hex
- Vendor ID: 00B0hex
- Special features: Development process certified according to IEC 62443-4-1; Product certified according to IEC 62443-4-2 Certification conditions see user documentation
- Functionality: Functionality
- Power consumption: Type. 15 W (with 1 A on UBus for the I/Os)
- Note on dimensions: The depth applies when using a TH 35-7.5 mounting rail (according to EN 60715).
- Supply voltage 5 V DC (via bus base module)
- Device function: PROFINET controller, PROFINET device
- PROFINET: PROFINET
- Performance class B
- UL Ex, USA / Canada: UL Ex, USA / Canada
- Real-time clock: Yes
- Number of supported nodes: Max. 128 (on PROFINET controller)
- System requirements: System requirements
- Supported programming languages: Process language (AS/SFC);contact plan (LAD/LD);function block language (FBS/FBD);structured text (ST);C++;C#;Java;Python®;Simulink®
- Web server: Yes
- Number of local bus subscribers that can be connected: Max. 63 (note power consumption)
- Axioline F-Local bus: Axioline F-Local bus
- Potential: Supply of the Axioline F-local bus (UBus): Potential: Supply of the Axioline F-local bus (UBus)
- Axioline F-plug: Axioline F-plug
- IEC-61131 runtime system: IEC-61131 runtime system
- Program memory 12 MB
- Data storage 32 MB
- Data remanence memory:1 MB
- RAM 2048 MB
- Engineering tool: PLCnext Engineer;Eclipse®;Visual Studio®;MATLAB®/ Simulink®
- Safety function: No.
- Conformity to EMC guidelines: Testing the immunity to EN IEC 61000-6-2 Discharge of static electricity (ESD)IEC 61000-4-2 Criterion B, ±6 kV contact discharge, ±8 kV air discharge;Testing of immunity according to EN IEC 61000-6-2 Electromagnetic fieldIEC 61000-4-3 Criterion A, field strength: 10 V/m;immunity testing to EN IEC 61000-6-2 Fast transients (burst) IEC 61000-4-4 Criterion B, ±2 kV;Immunity testing according to EN IEC 61000-6-2 Transient overvoltage (surge)IEC 61000-4-5 Criterion B , Power supply cables DC: ±0.5 kV/±1.0 kV (symmetric/asymmetric), Fieldbus cable shield: ±10 kV;Immunity testing according to EN IEC 61000-6-3 Line interference criterion 61000-4-6, IEC 1.0 V; Interference emission test according to IEC 61000-6-2
- Display
- Trusted Platform Module: TPM 1.2 (up to hardware version 03);TPM 2.0 (from hardware version 04)
- Update rate: Min 1 MS (32 subscriber);min. 2 MS (64 subscriber);min. 4 MS (128 subscriber)
- Supported functionality: FSU PROFINET controller
- Application interface: OPC UA®
- Power supply 1 A.
- Service: Service
- Potential: Infeed of the logic voltage UL (the supply of the Axioline F local bus UBus is generated from UL): Potential: Infeed of the logic voltage UL (the supply of the Axioline F local bus UBus is generated from UL)
- Diagnostic display: No.
- Redundancy function: Yes
- Industrial Cyber Security: Yes
- Flash memory: 1 GB (internal flash memory);SD card from Phoenix Contact (external flash memory, see accessories)
- Note redundancy function: Application system redundancy
- Description Real-time clock: 0.7 s/day = 8 ppm at 25 °C.
- PROFILOUD IoT Platform
- Supports cloud computing: Yes
- Process data width: 64 bytes ... 512 bytes (PROFINET device)
- IoT capability: PROFICLOUD: IoT capability: PROFILOUDIOT capability: PROFICLOUD
- Axioline: Axioline
- Note Safety function: Functional safety is possible with the AXC F XT SPLC 1000 or AXC F XT SPLC 3000 left-mounted expansion modules.
- Product type
Controller
- Interfaces
USB C
RJ45
- Operating voltage
24 V DC
5 V DC
- Height
126.93 mm
- Length
75 mm
- Width
100 mm
IP20
- Dim
(L x W x H) 75 x 100 x 126.93 mm
- Connection
Push-in wire connector
- Display
No
- Manufacturer part #
1069208
- Type
AXC F 3152
- Type
modular
- Program memory
12 MB
- Fitting type (details)
Carry rail mounting
- Real-time clock
Yes
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
- Depth
74.750074 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562652 Phoenix Contact AXC F 3152 1069208 Controller 24 V DC, 5 V DC
User & Safety Instructions
User & Safety Instructions 3562652 Phoenix Contact AXC F 3152 1069208 Controller 24 V DC, 5 V DC
Description
PLCnext Control for direct control of Axioline F-I/Os. With three independent Ethernet interfaces. Complete with connector plug and bus base module.
