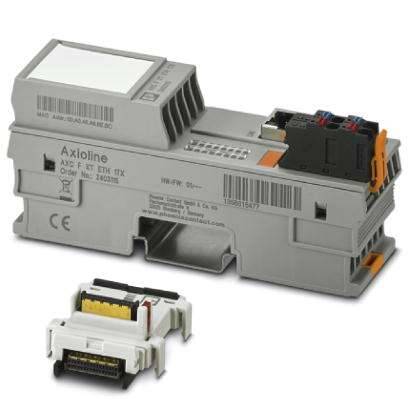

Phoenix Contact AXC F XT ETH 1TX 2403115 PLC add-on module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Protective circuit: Reverse polarity protection Supply voltage Reverse polarity protection diode
- Color: Traffic gray A RAL 7042
- Net weight: 157.8 g
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Wire stripping length: 8 mm
- Conductor cross-section rigid Min: 0.2 mm²
- Conductor cross-section rigid max. 1.5 mm²
- Conductor cross-section flexible min.: 0.2 mm²
- Conductor cross-section flexible max. 1.5 mm²
- Conductor cross-section AWG min: 24
- Conductor cross-section AWG max. 16
- Transmission speed 10/100/1000 Mbps (full duplex)
- Product type
PLC add-on module
- Type
AXC F XT ETH 1TX
- Operating voltage
24 V DC
- Height
126.1 mm
- Length
54 mm
- Width
35 mm
IP20

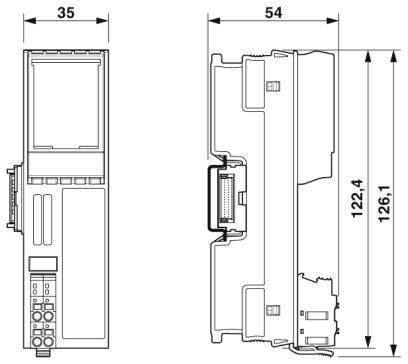

- Dim
(L x W x H) 54 x 35 x 126.1 mm
- Connection
Push-in wire connector
- Manufacturer part #
2403115
- Fitting type (details)
Carry rail mounting
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209737 Phoenix Contact AXC F XT ETH 1TX 2403115 PLC add-on module 24 V DC
User & Safety Instructions
User & Safety Instructions 2209737 Phoenix Contact AXC F XT ETH 1TX 2403115 PLC add-on module 24 V DC
Description
Link-mountable Ethernet interface, for connection to a compatible modular control of the Axiocontrol series.
