Name: Phoenix Contact AXL F AO4 XC 1H 2702153 I/O module 5 V DC
Brand: Phoenix Contact
SKU: 2137416

A grey automation module with plug connectors and a small, removable unit at the front.

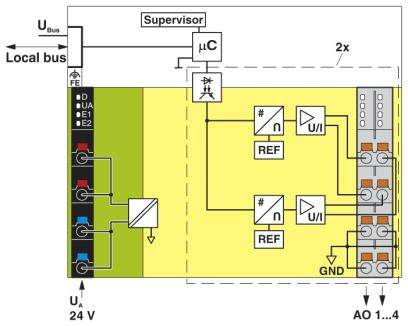

'Block diagram of a circuit diagram with local bus display. Shows supervisor, microcontroller, reference circuit and current/voltage inputs.'

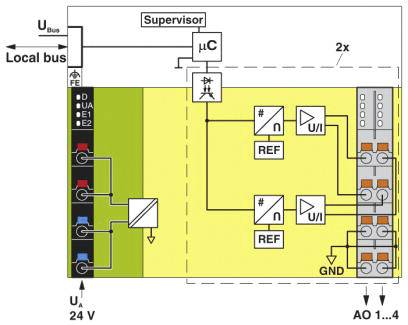

'Schematic representation of a monitoring module with inputs for voltage (U, I) and monitoring functions (Supervisor, μC).'

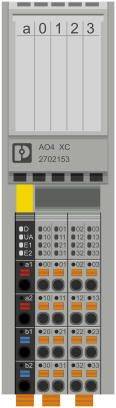

Illustration of a digital input module with multiple connections for control and interconnection in an electrical control cabinet.

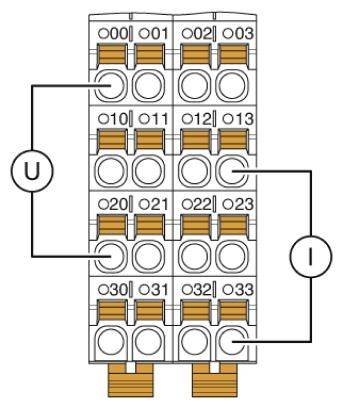

Schematic of an electrical terminal block. Numbers 00 to 33 indicate connection points. 'U' and 'I' refer to voltage and current.

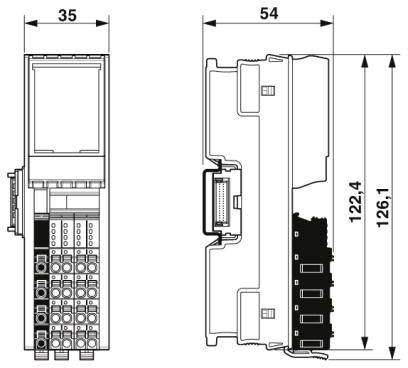

Technical drawing of an electronic switch with two views: Front view shows input terminals, side view with dimensions 35 mm width, 54 mm depth, 122.4 mm height.

1/6

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Protective circuit: Overvoltage protection supply voltage electronic (35 V, 0.5 s)
Color: Traffic gray A RAL 7042
Net weight: 199 g
Number of outputs: 4
Installation position: Any (no temperature derating)
Wire stripping length: 8 mm
Conductor cross-section rigid Min: 0.2 mm²
Conductor cross-section rigid max. 1.5 mm²
Conductor cross-section flexible min.: 0.2 mm²
Conductor cross-section flexible max. 1.5 mm²
Conductor cross-section AWG min: 24
Conductor cross-section AWG max. 16
Transmission speed 100 MBit/s.
Power consumption: Max. 3 W (at UA)
Resolution D/A converter: 16 bit

Product type: I/O module

Type: AXL F AO4 XC 1H

No. of analogue outputs: 4

No. of outputs (max.): 4

Min. operating voltage: 19.2 V DC

Operating voltage: 19.2 - 30 V DC

Max. operating voltage: 30 V DC

Operating voltage: 5 V DC

Height: 126.1 mm

Length: 54 mm

Width: 35 mm

: IP20

Dim: (L x W x H) 54 x 35 x 126.1 mm

Connection method: 2-core

Connection: Push-in wire connector

Max. current consumption: 120 mA

Manufacturer part #: 2702153

Fitting type (details): Mounting rail

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

Logic voltage UL: 5 V DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2137416 Phoenix Contact AXL F AO4 XC 1H 2702153 I/O module 5 V DC

User & Safety Instructions

User & Safety Instructions 2137416 Phoenix Contact AXL F AO4 XC 1H 2702153 I/O module 5 V DC

Description

4 analogueue output channels for optionally connecting voltage or current signals. Bipolar voltage outputs, unipolar current outputs. Connection of actuators in 2-wire technology. Voltage ranges: 0 V ... 10 V, ±10 V, 0 V ... 5 V, ±5 V. Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA Short-circuit proof outputs. No derating in all areas. Short signal rise times. Drive high loads. Saved device type label. Diagnostic and status indicators. Can be used under extreme ambient conditions. Extended temperature range -40°C...+70°C (see chapter "successfully tested: Use under extreme ambient conditions" in the data sheet). Partially painted printed circuit boards.
