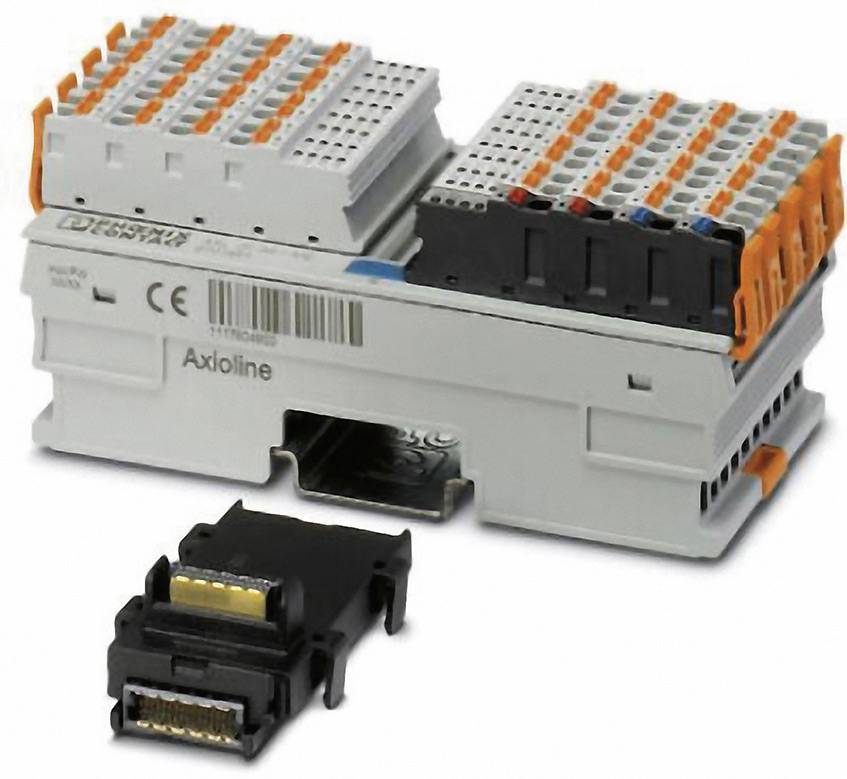

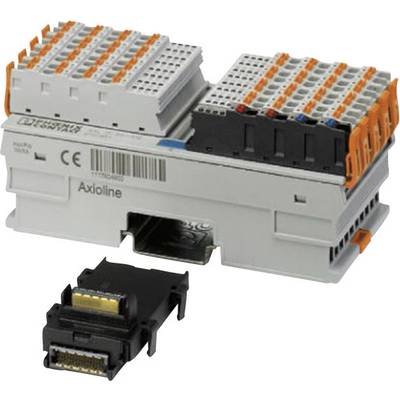

Phoenix Contact AXL F DI64/1 2F 2701450 PLC add-on module 24 V DC
EAN:
Part number:
Item no:
Technical specifications
- Product type
PLC add-on module
- Type
AXL F DI64/1 2F
- No. of digital inputs (max.)
64
- No. of inputs (max.)
64
- No. of inputs
64 x
- Operating voltage
24 V DC
- Height
129.9 mm
- Length
54 mm
- Width
53.6 mm
IP20
- Dim
(L x W x H) 54 x 53.6 x 129.9 mm
- Field bus system
Local bus
- Manufacturer part #
2701450
- Max. ambient temperature
60 °C
- Min. ambient temperature
-25 °C
- Logic voltage UL
5 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1220162 Phoenix Contact AXL F DI64/1 2F 2701450 PLC add-on module 24 V DC
Description
The module is intended for use within a axio Line Station. It is used for the detection of digital signals. In order to increase the interference immunity, the filter times of the inputs can be set. Filter times of 100 μs allow the users, the application a number function with an input frequency of up to 5 kHz.
