Buy Phoenix Contact AXL F DO16/2 2H 1027904 I/O module 5 V DC

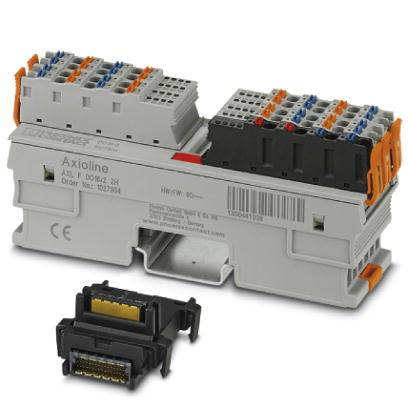

Electronic connectors and modules with orange, blue and grey elements. Main module bears the inscription 'Axioline'.

Image similar

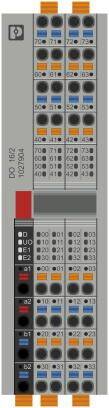

An electronic module with multiple input and output ports, buttons, and LED indicators, used for controlling processes.

Diagram of an electrical circuit with two output groups (DO 01-08 and DO 09-16), local bus connection and power supply (24 V).

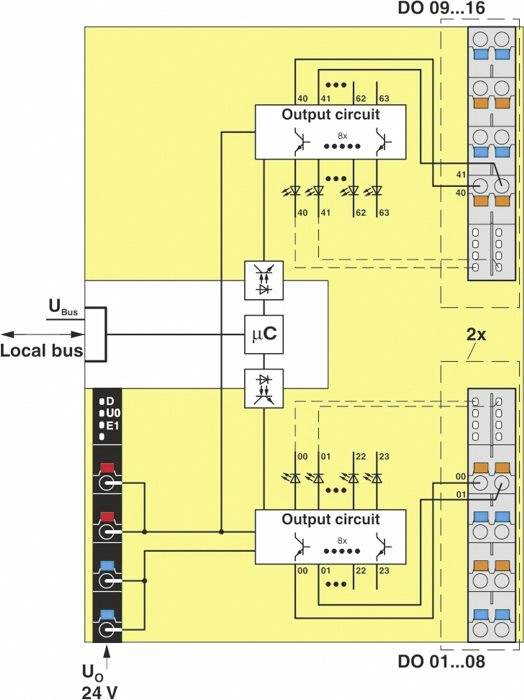

Diagram of a switching circuit with two output circuits, local bus connections, and labels for U_Bus and U_0, 24 V.

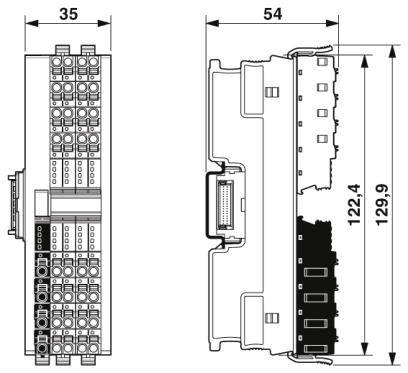

'Dimensions of an electronic component: Width 35 mm, Length 54 mm, Height varying between 122.4 mm and 129.9 mm.'

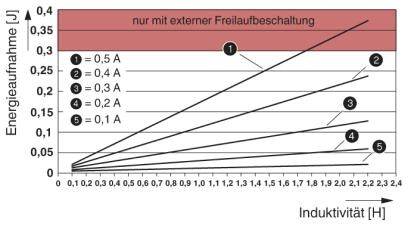

Diagram with red and white areas. Shows energy absorption in [J] versus inductivity [H]. Lines for different ampere values (0.1 to 0.5 A).

Schematic of an electrical distribution board with numbered outputs OUT01 to OUT16, showing various slots and connections.

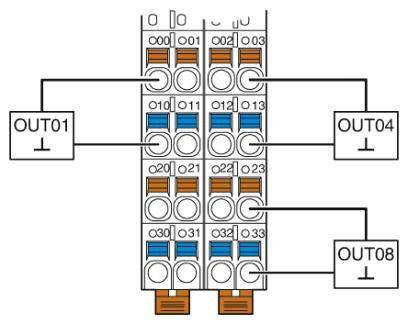

'Circuit diagram of an electrical connection unit, showing four outputs: OUT01, OUT04, OUT08, connected to various terminals.'

1/8

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Protective circuit: Overvoltage protection supply voltage electronic (35 V, 0.5 s)
Color: Traffic gray A RAL 7042
Net weight 212.8 g
PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
Number of outputs: 16
Installation position: Any (no temperature derating)
Wire stripping length: 8 mm
Conductor cross-section rigid Min: 0.2 mm²
Conductor cross-section rigid max. 1.5 mm²
Conductor cross-section flexible min.: 0.2 mm²
Conductor cross-section flexible max. 1.5 mm²
Conductor cross-section AWG min: 24
Conductor cross-section AWG max. 16
Transmission speed 100 MBit/s.
Power consumption: max. 300 mW

Product type: I/O module

Type: AXL F DO16/2 2H

No. of outputs (max.): 16

Output signal current: 500 mA

Max. output current per channel: 500 mA

Min. operating voltage: 19.2 V DC

Operating voltage: 19.2 - 30 V DC

Max. operating voltage: 30 V DC

Output signal voltage: 24 V

Operating voltage: 5 V DC

Height: 129.9 mm

Length: 54 mm

Width: 35 mm

: IP20

Dim: (L x W x H) 54 x 35 x 129.9 mm

Connection method: 2-core

Connection: Push-in wire connector

Max. current consumption: 60 mA

Manufacturer part #: 1027904

Fitting type (details): Mounting rail

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

Logic voltage UL: 5 V DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2208989 Phoenix Contact AXL F DO16/2 2H 1027904 I/O module 5 V DC

User & Safety Instructions

User & Safety Instructions 2208989 Phoenix Contact AXL F DO16/2 2H 1027904 I/O module 5 V DC

Description

16 digital outputs. 24 V DC, 500 mA Connection of actuators in 2-wire technology. Single-channel diagnostics. Minimum update time less than 100 µs. Saved device type label.
