Name: Phoenix Contact AXL F DO8/2 2A XC 1H 1035427 I/O module 5 V DC
Brand: Phoenix Contact
SKU: 2209005

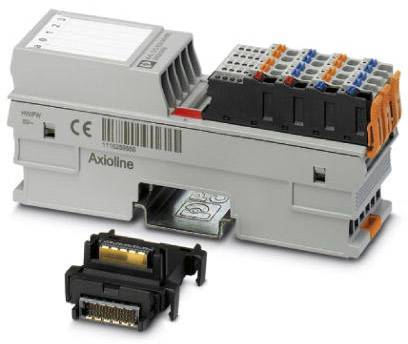

An Axioline module with coloured connection terminals and CE marking, alongside a compact plug connector for electrical connections.

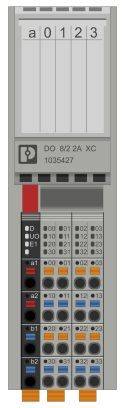

Grey electronic component with label 'DO 8/2 2A XC'. Numbers '0 1 2 3' above, with coloured connectors and symbols below.

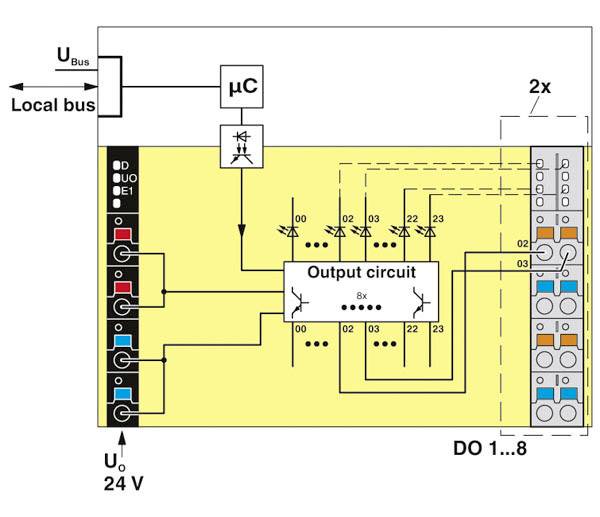

Circuit diagram of an output module with microcontroller, 8-way output circuit and connections. Left U-Bus, right DO connections.

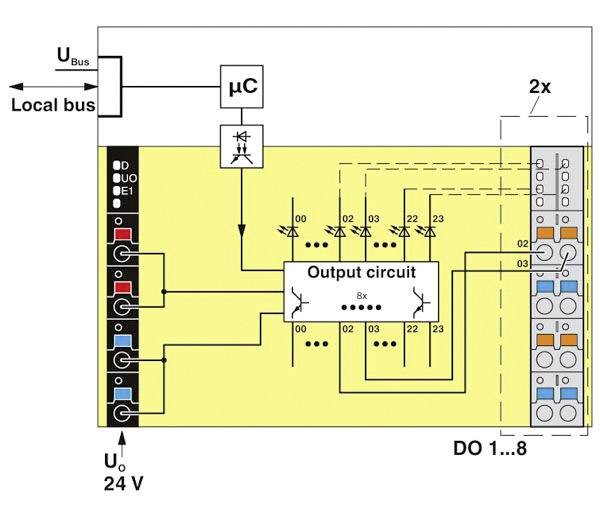

'Circuit diagram of an output circuit with microcontroller control. Shows connections and components on a printed circuit board.'

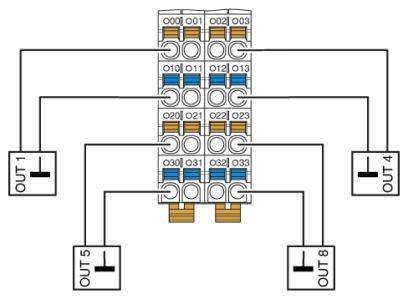

Block diagram shows electrical circuits, connected with outputs OUT1, OUT4, OUT5, and OUT8.

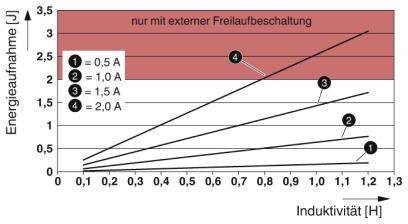

'Diagram shows energy absorption against inductance for various current strengths (0.5A to 2A)', with warning 'only with external free-wheeling circuit'.

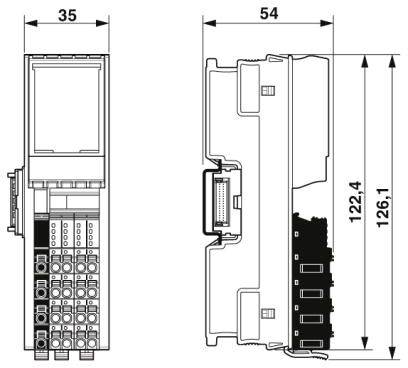

Technical drawing of an electrical device with dimensions: width 35 mm, depth 54 mm, height 126.1 mm. Shows side and front view.

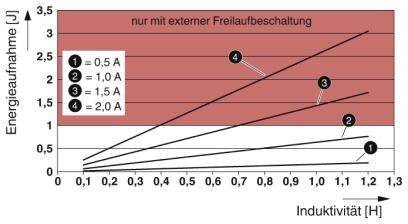

Graph shows the energy absorption (J) as a function of inductivity (H) at various current strengths (0.5 A to 2.0 A).

1/8

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Protective circuit: Overvoltage protection supply voltage electronic (35 V, 0.5 s)
Color: Traffic gray A RAL 7042
Net weight: 191.1 g
PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
Number of outputs: 8
Installation position: Any (no temperature derating)
Wire stripping length: 8 mm
Conductor cross-section rigid Min: 0.5 mm²
Conductor cross-section rigid max. 1.5 mm²
Conductor cross-section flexible min.: 0.5 mm²
Conductor cross-section flexible max. 1.5 mm²
Conductor cross-section AWG min: 20
Conductor cross-section AWG max. 16
Transmission speed 100 MBit/s.
Power consumption: Max. 750 mW (up to HW 01)

Product type: I/O module

Type: AXL F DO8/2 2A XC 1H

No. of outputs: 8 x

Output signal current: 2 A

Max. output current per channel: 2 A

Min. operating voltage: 19.2 V DC

Operating voltage: 19.2 - 30 V DC

Max. operating voltage: 30 V DC

Output signal voltage: 24 V

Operating voltage: 5 V DC

Height: 126.1 mm

Length: 54 mm

Width: 35 mm

: IP20

Dim: (L x W x H) 54 x 35 x 126.1 mm

Connection method: 2-core

Connection: Push-in wire connector

Max. current consumption: 150 mA

Manufacturer part #: 1035427

Fitting type (details): Mounting rail

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

Logic voltage UL: 5 V DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2209005 Phoenix Contact AXL F DO8/2 2A XC 1H 1035427 I/O module 5 V DC

User & Safety Instructions

User & Safety Instructions 2209005 Phoenix Contact AXL F DO8/2 2A XC 1H 1035427 I/O module 5 V DC

Description

8 digital outputs. 24 V DC, 2 A. Connection of actuators in 2-wire technology. Minimum update time less than 150 µs. Saved device type label. Can be used under extreme ambient conditions. Extended temperature range -40°C...+70°C (see chapter "successfully tested: Use under extreme ambient conditions" in the data sheet). Partially painted printed circuit boards.

This text is machine translated.
