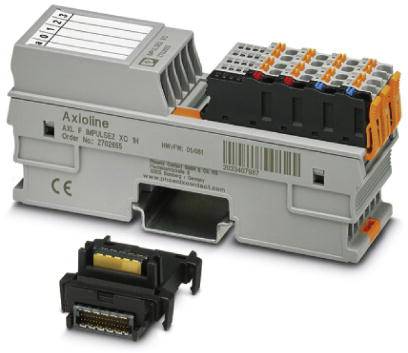

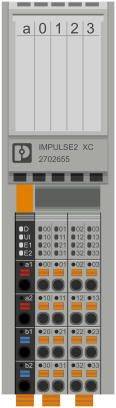

Phoenix Contact AXL F IMPULSE2 XC 1H 2702655 I/O module 5 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications

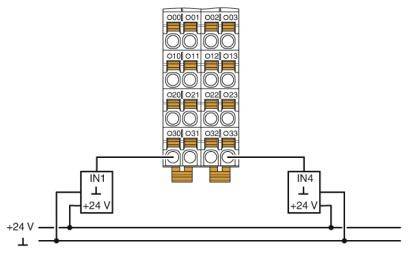

- Description of the input: En 61131-2 type 1 and 3
- Number of inputs: 4
- Protective circuit: Overvoltage protection supply voltage electronic (35 V, 0.5 s)
- Input filter time 250 µs
- Input voltage range \"0\" signal: -3 V DC ... 5 V DC
- Input voltage range \"1\" signal: 11 V DC ... 30 V DC
- Color: Traffic gray A RAL 7042
- Net weight 134 g
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Transmission speed 100 MBit/s.
- Power consumption: max. 0.75 W
- Product type
I/O module
- Type
AXL F IMPULSE2 XC 1H
- No. of digital inputs (max.)
4
- No. of inputs (max.)
4
- No. of inputs
4 x
- Min. operating voltage
19.2 V DC
- Operating voltage
19.2 - 30 V DC
- Max. operating voltage
30 V DC
- Operating voltage
5 V DC
- Height
126.1 mm
- Length
54 mm
- Width
35 mm
IP20
- Dim

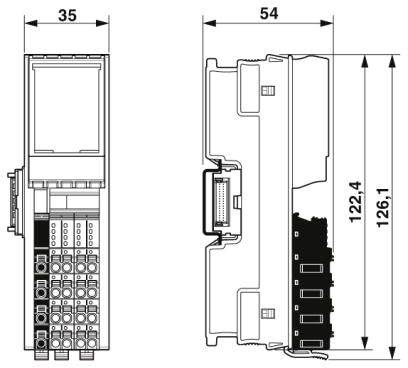

(L x W x H) 54 x 35 x 126.1 mm
- Connection method
1-core
- Max. current consumption
150 mA
- Manufacturer part #
2702655
- Fitting type (details)
Mounting rail
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
- Logic voltage UL
5 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136880 Phoenix Contact AXL F IMPULSE2 XC 1H 2702655 I/O module 5 V DC
User & Safety Instructions
User & Safety Instructions 2136880 Phoenix Contact AXL F IMPULSE2 XC 1H 2702655 I/O module 5 V DC
Description

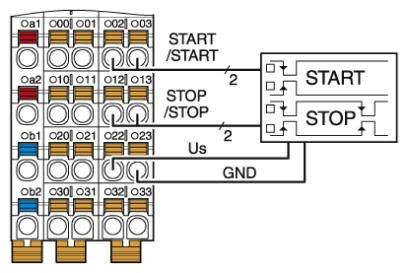

2 channels for magnetostrictive displacement transducer with start/stop interface. 5 stop events per channel. Automatic parameter upload. 4 digital inputs Saved device type label. Diagnostic and status indicators. Can be used under extreme ambient conditions. Extended temperature range -40°C...+70°C (see chapter "successfully tested: Use under extreme ambient conditions" in the data sheet). Partially painted printed circuit boards.
