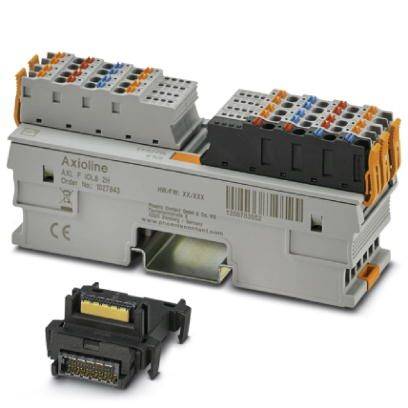

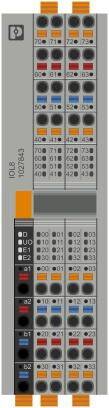

Phoenix Contact AXL F IOL8 2H 1027843 I/O module
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Description of the input: IO-Link ports in digital input mode (DI)
- Number of inputs: Max. 8 (EN 61131-2 type 1)
- Input filter time: 1 µs
- Input voltage range \"0\" signal: -0.3 V DC ... 5 V DC
- Input voltage range \"1\" signal: 11 V DC ... 30 V DC
- Color: Traffic gray A RAL 7042
- Net weight 215 g
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Number of outputs: Max. 8
- Installation position: Any (no temperature derating)
- Wire stripping length: 8 mm
- Pollution level: 2
- Conductor cross-section rigid Min: 0.2 mm²
- Conductor cross-section rigid max. 1.5 mm²
- Conductor cross-section flexible min.: 0.2 mm²
- Conductor cross-section flexible max. 1.5 mm²
- Conductor cross-section AWG min: 24
- Conductor cross-section AWG max. 16
- Transmission speed 100 MBit/s.
- Product type
I/O module
- Type
AXL F IOL8 2H
- No. of digital inputs (max.)
8
- No. of inputs (max.)
8
- No. of outputs (max.)
8

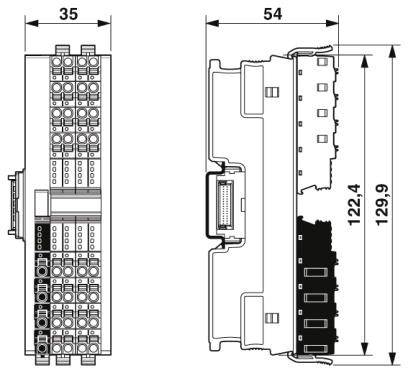

- Height
129.9 mm
- Length
54 mm
- Width
35 mm
IP20
- Dim
(L x W x H) 54 x 35 x 129.9 mm
- Connection method
3-core
- Connection
Push-in wire connector
- Manufacturer part #
1027843
- Fitting type (details)
Mounting rail
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2208987 Phoenix Contact AXL F IOL8 2H 1027843 I/O module
User & Safety Instructions
User & Safety Instructions 2208987 Phoenix Contact AXL F IOL8 2H 1027843 I/O module
Description

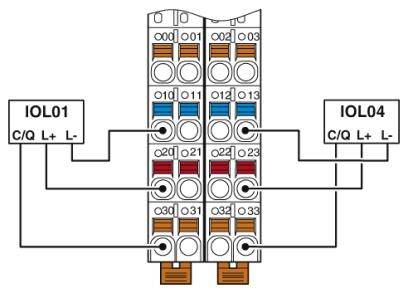

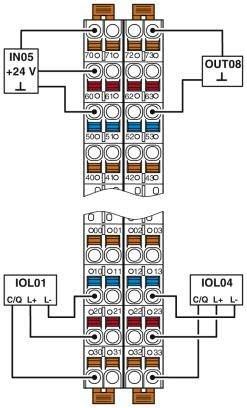

Connection of the sensors in 3-wire technology. Connection of actuators in 2-wire technology. Parameter data storage on the master. IO-Link specification V1.1.2. Saved device type label.
