Buy Phoenix Contact AXL F PM EF 1F 2702671 Function module 5 V DC

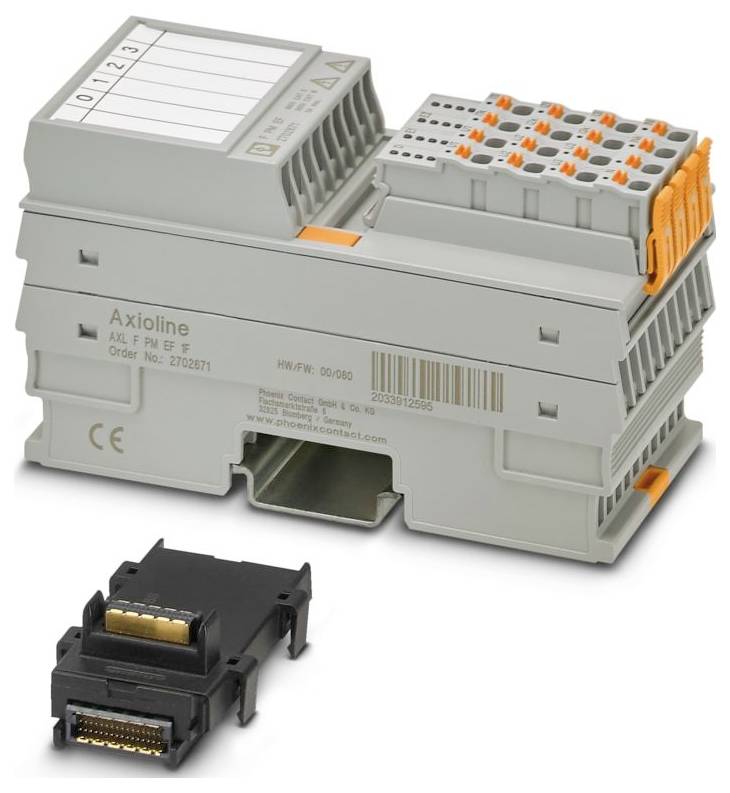

A gray terminal block module labeled 'Axioline' with orange connectors, used in industrial automation for connecting multiple wiring systems.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Axioline F product family
Modular design: Block modules
Push-in connection
Conductor cross-section flexible: 1.5 mm²
Conductor cross-section rigid: 1.5 mm²
Conductor cross-section AWG: 16
Width 53.6 mm
Height: 126.1 mm
Depth: 65.5 mm
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -25 °C ... 60 °C
Ambient temperature (storage/transport): -40 °C ... 85 °C
Mounting type: Rail mounting
Insulation properties: Insulation properties
Pollution level: 2
Permissible air humidity (operation): 5 % ... 95% (no condensation)
Name of connection: Axioline F-plug
Stripped length: 8 mm
Installation position: Arbitrary (no temperature derating)
Transmission speed 100 MBit/s
Maximum power loss at rated conditions 2.15 W.
Protection class: II
Number of interfaces: 2
Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m üNN, from HW 01)
Operating mode: Process data operation in 32 words
Connection technology: Connection technology
Permissible humidity (storage/transport): 5 % ... 95% (no condensation)
Note for application: Only for industrial use
Current consumption: Max. 80 mA;type. 73 mA
Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m üNN)
Note on connection type: Refer to the information on the conductor cross-sections in the "Axioline F: System and Installation" user manual.
Only use reinforced or double insulated conductors with a conductor cross-section of 1.5 mm²!
Usage restriction: Use restriction
EMC note: EMC: Class A product, see manufacturer's declaration in the download area
Note on dimensions: The depth applies when using a TH 35-7.5 mounting rail (according to EN 60715).
Supply voltage 5 V DC (via bus base module)
Module
Input address space: 64 bytes
Output address space: 0 bytes
Need for parameter data: 26 bytes
Need for configuration data: 6 bytes
Potential separation/insulation of the voltage ranges: Potential separation/insulation of the voltage ranges
Axioline F-Local bus: Axioline F-Local bus
Potential: Supply of the Axioline F-local bus (UBus): Potential: Supply of the Axioline F-local bus (UBus)
Test voltage: 5 V supply of local bus (UBus) / functional ground: 500 V AC, 50 Hz, 1 min.
Axioline F-plug: Axioline F-plug
Test voltage: 5 V supply of local bus (UBus) / peripheral range AC: 4 kV, 50 Hz, 1 min.
Test voltage 4 kV, 50 Hz, 1 min.
