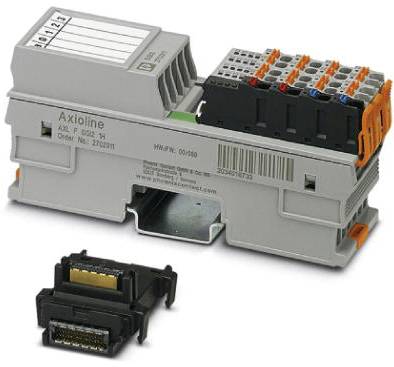

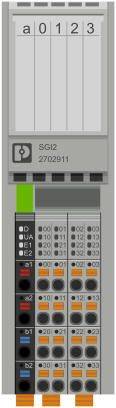

Phoenix Contact AXL F SGI2 1H 2702911 I/O module 5 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Input Description: Input channels for strain gauges
- Number of inputs: 2
- Protective circuit: Overvoltage protection supply voltage suppressor diode
- Color: Traffic gray A RAL 7042
- Net weight: 187.7 g
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Number of outputs: 2
- Installation position: Any (no temperature derating)
- Transmission speed 100 MBit/s.
- Power consumption: Type. 325 mW
- Product type
I/O module
- Type
AXL F SGI2 1H
- No. of analogue inputs
2
- No. of inputs
2 x
- No. of outputs
2 x
- Min. operating voltage
19.2 V DC
- Operating voltage
19.2 - 30 V DC
- Max. operating voltage
30 V DC
- Output signal voltage
5 V
- Operating voltage
5 V DC
- Height
126.1 mm
- Length
54 mm
- Width
35 mm
IP20

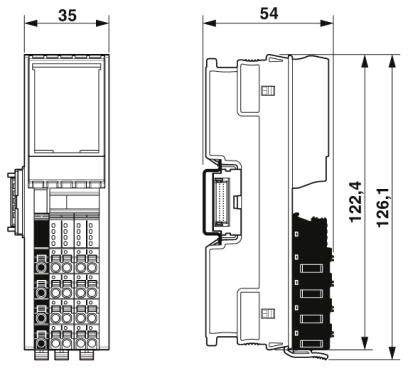

- Dim
(L x W x H) 54 x 35 x 126.1 mm
- Connection method
Cable
- Max. current consumption
65 mA
- Manufacturer part #
2702911
- Fitting type (details)
Mounting rail
- Response time tS
0.2 ms
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
- Logic voltage UL
5 V DC
- No. of relay outputs (max.)
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137506 Phoenix Contact AXL F SGI2 1H 2702911 I/O module 5 V DC
User & Safety Instructions
User & Safety Instructions 2137506 Phoenix Contact AXL F SGI2 1H 2702911 I/O module 5 V DC
Description

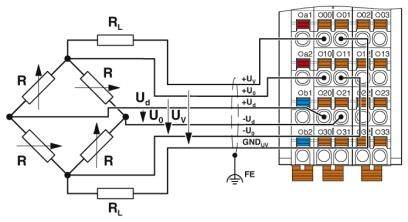

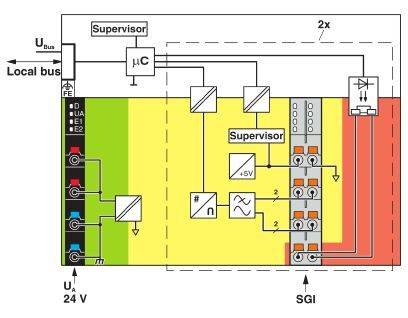

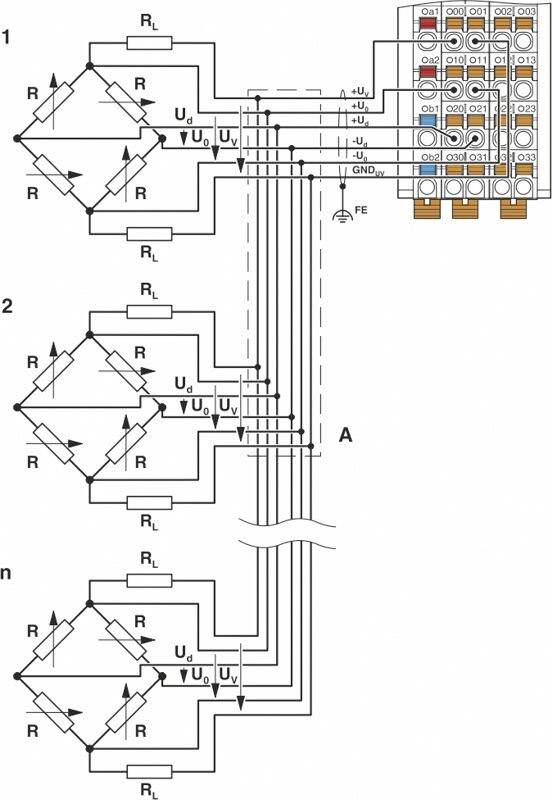

2 highly accurate inputs for DMS. Factory-adjusted measuring ranges with nominal values. Manual key-in. Process data update can be parameterized in stages between 200 μs and 100 ms. Can be adjusted in the process environment by means of line alignment. 2-point adjustment. Connection of the DMS in 6- and 4-wire technology. Advanced wire break detection. Sensor supply up to 115 mA (8 load cells with 350 Ω per channel). Per channel: Low-ohm, potential-free normally open contact. Parameterization of the channels independantly of each other via the bus system. Tare furnishings.
This text is machine translated.
