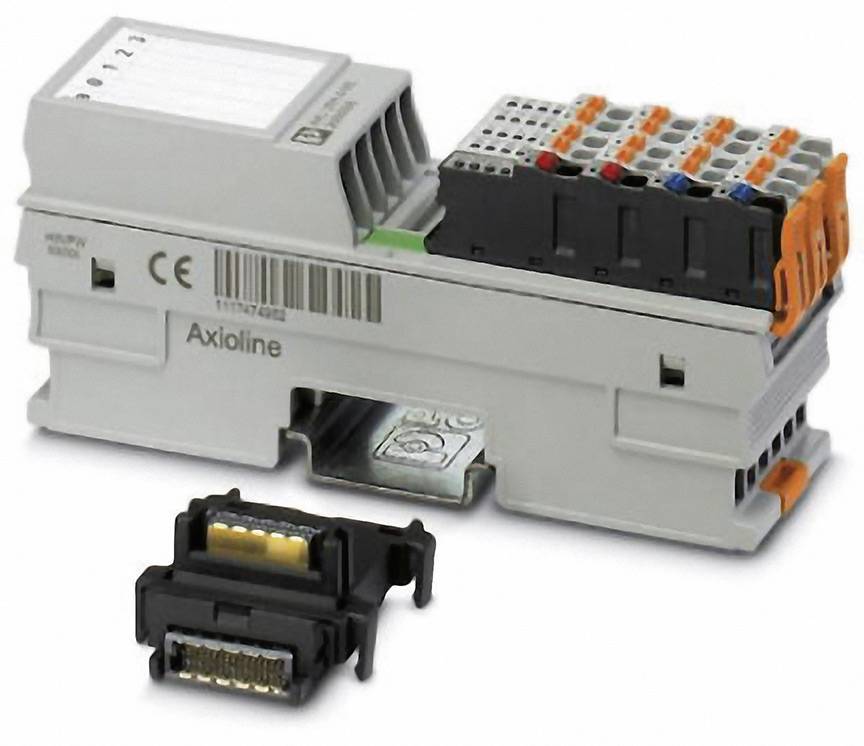

Phoenix Contact AXL F UTH4 1H 2688598 PLC add-on module 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 298.32 / piece)
€ 298.32
plus VAT.
14-day return policy included
Technical specifications
- Product type
PLC add-on module
- Type
AXL F UTH4 1H
- No. of analogue inputs
5
- No. of inputs (max.)
5
- No. of inputs
5 x
- Operating voltage
24 V DC
- Height
126.1 mm
- Length
54 mm
- Width
35 mm
IP20
- Dim
(L x W x H) 54 x 35 x 126.1 mm
- Field bus system
Local bus
- Manufacturer part #
2688598
- Max. ambient temperature
60 °C
- Min. ambient temperature
-25 °C
- Logic voltage UL
5 V DC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1220159 Phoenix Contact AXL F UTH4 1H 2688598 PLC add-on module 24 V DC
Description
The module is intended for use within a axio Line Station. It is used to capture the signals of the commercial thermocouples in industrial environments. The module supports different thermocouple types are supported according to DIN EN 60584-1 and DIN 46710 as well as linear voltages from -100 mV to +100 mV. In addition, it offers a voltage input from 5V to +5V by means of measuring transducer can here, for example, Heating currents can be monitored. The two Pt100 Inputs (CJ1 and CJ2) you can each as a sensor input or as an external comparison point.
