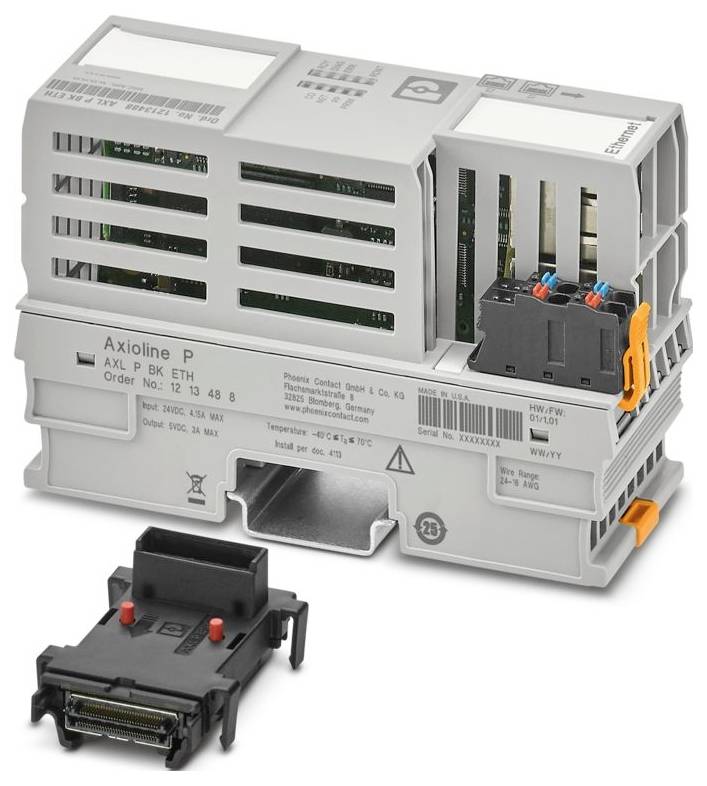

Phoenix Contact AXL P BK ETH 1213488 Bus coupler 24 V DC, 5 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: Axioline P.
- Modular design: Block modules
- Push-in connection
- Conductor cross-section flexible: 0.2 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 1.5 mm².
- Wire cross-section AWG: 24 ... 16
- Width 45 mm
- Height: 126.93 mm
- Depth: 75 mm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 70 °C (installation position: Wall mounting on horizontal mounting rail);-40 °C ... 50 °C (Installation position: Any)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- OVERVOLTAGE CATEGORY II (IEC 60664-1, EN 60664-1)
- Pollution level 2 (IEC 60664-1, EN 60664-1)
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- Name of connection: Power supply
- Stripped length: 8 mm
- Installation position: Arbitrary (observe temperature derating)
- ATEX
- IECEx: IECEx
- Transmission speed 100 MBit/s
- Identification: II 3G Ex ec IIC T4 GC X
- UL, USA / Canada: Class I, div. 2, GROUPS A, B, C, D T4
- Class I, Zone 2, IIC T4
- Maximum power loss at rated conditions 5 W.
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Number of interfaces: 1
- Air pressure (operation): 70 kPa ... 106 kPa (up to 2000 m üNN)
- Range of supply: Inclusive of bus base module and plug
- Supply voltage range: 19.2 V DC ... 30 V DC (including all tolerances, including ripple)
- Certificate: PxCAI22UKEx2316390X
- Connection technology: Connection technology
- Permissible humidity (storage/transport): 5 % ... 95% (no condensation)
- Note for application: Only for industrial use
- Current consumption: Max. 4.15 A (19.2 V DC);type. 125 mA (24 V DC)
- Wire connection: Conductor connection
- Protection circuit: Overvoltage protection | electronic;reverse polarity protection | electronic
- Supported protocols: ModBus/TCP;HTTP;BootP;DHCP
- Transfer Physics: Ethernet in RJ45-Twisted-Pair
- Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 2000 m üNN)
- Note on connection type: Refer to the information on the conductor cross-sections in the "Axioline P: System and Installation" user manual.
- Usage restriction: Use restriction
- EMC note: EMC: Class A product, see manufacturer's declaration in the download area
- CCCex Note: Use in hazardous areas is not permitted in China.
- Ex data: Ex data
- UKCA Ex (UKEX) UKCA Ex (UKEX)
- Note on dimensions: The depth applies when using a TH 35-7.5 mounting rail (according to EN 60715).
- Supply voltage 5 V DC (via bus base module)
- System limits: System limits
- Number of supported subscribers: Max. 22 (per station)
- Potential separation/insulation of the voltage ranges: Potential separation/insulation of the voltage ranges
- Test voltage: Ethernet interface 1 / Ethernet interface 2: 1500 V AC, 50 Hz, 1 min.
- Testing voltage: Ethernet interface 1 / Functional earthing: 1500 V AC, 50 Hz, 1 min.
- Testing voltage: Ethernet interface 2 / Functional earthing: 1500 V AC, 50 Hz, 1 min.
- Axioline P-Local bus: Axioline P-Local bus
- Potential: Supply of the Axioline P local bus (UBus): Potential: Supply of the Axioline P local bus (UBus)
- ModBus/TCP: Modbus/TCP
- Potential: Supply of the bus coupler (UL): Potential: Supply of the bus coupler (UL)
- Power supply: Max. 3 A (via bus-base module)
- Test voltage: Ethernet interface 1 / 24-V supply of logic voltage (UL): 1500 V AC, 50 Hz, 1 min.
- Test voltage: Ethernet interface 2 / 24-V supply of logic voltage (UL): 1500 V AC, 50 Hz, 1 min.
- Testing voltage 24 V supply of logic voltage (UL) / functional earthing 500 V AC, 50 Hz, 1 min.
- Power supply: Power supply
- Product type
Bus coupler
- Type
AXL P BK ETH
- Connectable in-line terminals
22
- Operating voltage
24 V DC
5 V DC
- Height
126.93 mm
- Length
75 mm
- Width
45 mm
IP20
- Dim
(L x W x H) 75 x 45 x 126.93 mm
- Connection method
Push-in wire connector
- Connection
Push-in wire connector
- Max. current consumption
4.15 A
- Manufacturer part #
1213488
- Type
modular block
- Fitting type (details)
Carry rail mounting
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
- Logic voltage UL
24 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566755 Phoenix Contact AXL P BK ETH 1213488 Bus coupler 24 V DC, 5 V DC
User & Safety Instructions
User & Safety Instructions 3566755 Phoenix Contact AXL P BK ETH 1213488 Bus coupler 24 V DC, 5 V DC
Description
Axioline P, Bus Coupler, Modbus / TCP, RJ45 socket, transfer speed in local bus: 100 MBit / s, protection class: IP20, including bus base module and plug
