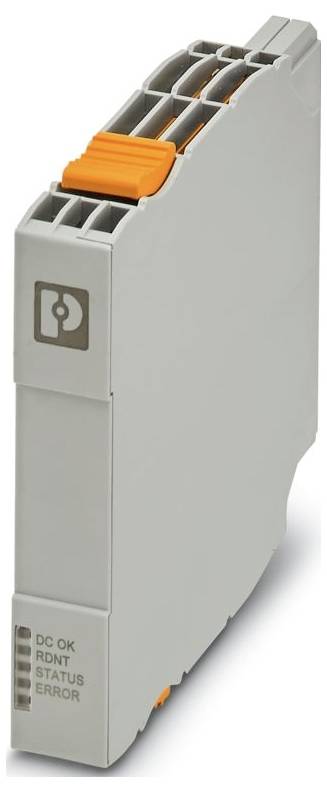

Phoenix Contact AXL P FBPS 28DC/0.5A 2316394 Feeder module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: Axioline P.
- Width: 17 mm
- Height: 92 mm
- Depth: 97 mm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Standards/regulations: IEC 61158-2
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level: 2
- Permissible air humidity (operation): 5 % ... 95 %.
- Vibration (operation): 2g
- ATEX
- IECEx: IECEx
- Identification: II 3G Ex ec IIC T4 GC X
- UL, USA / Canada: Class I, div. 2, GROUPS A, B, C, D T4
- Class I, Zone 2, IIC T4
- Maximum power loss at rated conditions 6 W.
- Power loss 2.5 W (typical)
- Certificate: IECEx IBE 18.0023X
- Note for application: Only for industrial use
- Rated input voltage range: 18.5 V DC ... 30.5 V DC
- Power consumption maximum 1.35 A
- Series switch option: No.
- Parallel switching capability: Yes, for redundancy
- Mounting instructions: Plug connections must only be operated without load or voltage.
- Operating height 2000 m
- Shock 15g
- Standard name: PROFIBUS standardization
- Input voltage 24 V/DC
- Output voltage range: 28 V DC ... 30 V DC (on the main line)
- Usage restriction: Use restriction
- EMC note: EMC: Class A product, see manufacturer's declaration in the download area
- INPUT VOLTAGE RANGE DC: 18.5 V DC ... 30.5 V DC
- CCCex Note: Use in hazardous areas is not permitted in China.
- Ex data: Ex data
- UKCA Ex (UKEX) UKCA Ex (UKEX)
- Input voltage, short-term: 24 V DC
- Product type
Feeder module
- Min. operating voltage
18.5 V DC
- Operating voltage
18.5 - 30.5 V DC
- Max. operating voltage
30.5 V DC
- Operating voltage
24 V DC
- Height
92 mm
- Length
97 mm
- Width
17 mm
IP20
- Dim
(L x W x H) 97 x 17 x 92 mm
- Manufacturer part #
2316394
- Type
AXL P FBPS 28DC/0.5A
- Fitting type (details)
Carry rail mounting
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579252 Phoenix Contact AXL P FBPS 28DC/0.5A 2316394 Feeder module 24 V DC
User & Safety Instructions
User & Safety Instructions 3579252 Phoenix Contact AXL P FBPS 28DC/0.5A 2316394 Feeder module 24 V DC
Description
Redundant Axioline P power supply plug for the PROFIBUS PA power supply socket. Supplies field bus coupler along the main line with 500 mA at 28 V DC.
