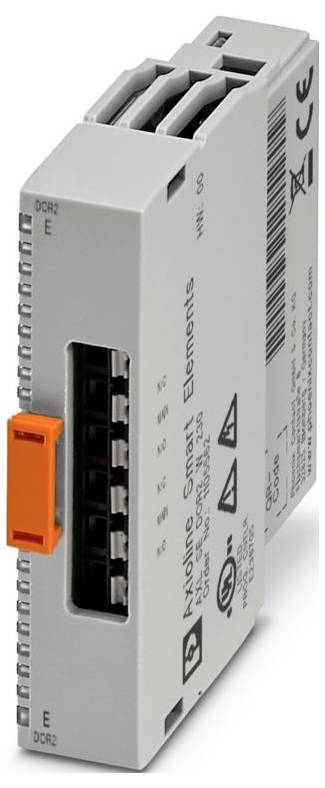

Phoenix Contact AXL SE DOR2 W 230 1105562 Relay module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: Axioline Smart Elements
- Modular design
- Push-in connection
- Conductor cross-section flexible: 0.25 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.25 mm² ... 1.5 mm².
- Wire cross-section AWG: 24 ... 16
- Width 14.9 mm
- Height: 62.2 mm
- Depth: 62 mm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Mounting type: Plug-in mounting (Smart element slot)
- Insulation properties: Insulation properties
- OVERVOLTAGE CATEGORY III (EN 61010-2-201/IEC 61010-2-201)
- Pollution level 2 (IEC 60664-1, EN 60664-1)
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- Naming of connection: Peripherals
- Stripped length: 8 mm
- Mounting position: See system in which you insert the Smart element.
- Transmission Speed: See the system in which you are using the Smart element.
- Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 0.75 mm²
- Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 1.5 mm².
- Maximum power loss at rated conditions 2 W.
- Number of interfaces: 1
- Air pressure (operation): 80 kPa ... 106 kPa
- Supply voltage range: 19.2 V DC ... 30 V DC (including all tolerances, including ripple)
- Connection technology: Connection technology
- Permissible humidity (storage/transport): 5 % ... 95% (no condensation)
- Note for application: Only for industrial use
- Current consumption: Type 36 mA (18 mA per relay, all contacts potential-free)
- Wire connection: Conductor connection
- Protective circuit: Overvoltage protection | See the system in which you insert the Smart element.;Reverse polarity protection | parallel diode
- Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m üNN)
- Note on connection type: Refer to the information on the conductor cross-sections in the "Axioline Smart ELEMENTS" user manual.;When selecting the cables, observe the permissible operating temperature in accordance with IEC or UL.
- Contact version: Changer
- Mechanical life: 20x 106 switching operations
- SWITCHING CAPACITY ACCORDING TO IEC 60947 0.1-5 220-1 44: 3 A (24 V (AC15));3 A (120 V (AC15));3 A (230 V (AC15));2 A (24 V (DC13), L/R = 100 MS);0.2 A (110 V (DC13), L/R = 44 MS)
- Number of outputs: 2 (floating)
- Switching capacity: Max. 1500 VA (AC applications up to 55 °C, note derating);max. 180 W (up to 30 VDC, NO contact, general use);max. 90 W (up to 30 V DC, NC contact, general use);max. 28 W (above 30 V DC);For additional DC values see DC load limit curve.
- Power supply 24 Vdc (through card-edge connector)
- Switching current: Max. 6 A (up to 250 V AC, cos phi = 0.75 ... 0.8);max. 6 A (up to 30 VDC, NO contact, general use);max. 3 A (up to 30 V DC, NC contact, general use);max. 580 mA (at 48 V DC);max. 250 mA (at 110 V DC);max. 125 mA (at 220 V DC);max. 220 mA DC (125 V DC, L/R ≤ 50 ms); max. 110 mA DC (250 V DC, L/R ≤ 50 ms)
- Module
- ID code (HEX): None
- 8-bit process data channel
- Input address space: 0 bytes
- Output address space: 1 bytes
- Need for parameter data: 9 bytes
- Need for configuration data: 6 bytes
- Potential separation/insulation of the voltage ranges: Potential separation/insulation of the voltage ranges
- Test voltage: 24 V supply (peripheral) / Functional ground: 500 V AC, 50 Hz, 1 min.
- Switching frequency: Max. 6 (per minute)
- Smart element interface Smart element interface
- Potential: Smart Elements logic supply (USE): Potential: Smart Elements logic supply (USE)
- Start time to operational readiness: < 500 ms
- Potential: Peripheral supply (UP): Potential: Peripheral supply (UP)
- Test voltage: Power supply logic/24-V supply (peripheral): 500 V AC, 50 Hz, 1 min.
- Testing voltage: Supply logic/functional earthing: 500 V AC, 50 Hz, 1 min.
- Peripherals: Peripherals
- Relay: Relays
- Testing voltage: Relay contact / functional earthing: 4 kV
- Switching capacity according to UL/CSA 61010-2-201: 5 A (AC, B300, up to max. 55 °C);1 A (DC, R300, up to max. 60 °C)
- Testing voltage: Supply logic / relay contact: 4 kV
- Test voltage 24 V supply (peripheral) / relay contact 4 kV
- Product type
Relay module
- Type
AXL SE DOR2 W 230
- No. of outputs (max.)
2
- No. of outputs
2 x
- Operating voltage
24 V DC
- Height
62.2 mm
- Length
62 mm
- Width
14.9 mm
IP20
- Dim
(L x W x H) 62 x 14.9 x 62.2 mm
- Connection method
2-core
- Connection
Push-in wire connector
- Max. current consumption
36 mA
- Manufacturer part #
1105562
- Type
modular
- Fitting type (details)
Smart element slot
- Max. ambient temperature
60 °C
- Min. ambient temperature
-25 °C
- No. of relay outputs (max.)
2
- Depth
62 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564154 Phoenix Contact AXL SE DOR2 W 230 1105562 Relay module 24 V DC
User & Safety Instructions
User & Safety Instructions 3564154 Phoenix Contact AXL SE DOR2 W 230 1105562 Relay module 24 V DC
Description
Axioline Smart Elements, relay module, relay outputs: 2 (potential free), changer, 220 VDC, 230 V AC, PROTECTION CLASS IP20
