Buy Phoenix Contact AXL SE PD16 GND 1337224 Potential distributor 24 V DC

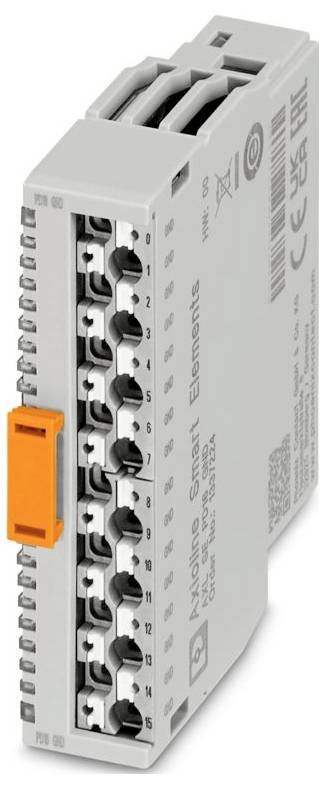

An industrial electronic module with labeled terminals and an orange clip, used for smart control systems.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product family: Axioline Smart Elements
Modular design
Push-in connection
Conductor cross-section flexible: 0.25 mm² ... 1.5 mm².
Conductor cross-section rigid: 0.25 mm² ... 1.5 mm².
Wire cross-section AWG: 24 ... 16
Width 14.9 mm
Height: 62.2 mm
Depth: 62 mm
Ambient conditions: Environmental conditions
Protection type IP20 (not rated by UL)
Ambient temperature (operation): -25 °C ... 60 °C
Ambient temperature (storage/transport): -40 °C ... 85 °C
Mounting type: Plug-in mounting (Smart element slot)
Insulation properties: Insulation properties
OVERVOLTAGE CATEGORY II (IEC 60664-1, EN 60664-1)
Pollution level 2 (IEC 60664-1, EN 60664-1)
Permissible air humidity (operation): 5 % ... 95% (no condensation)
Naming of connection: Peripherals
Stripped length: 8 mm
Mounting position: See system in which you insert the Smart element.
Transmission Speed: See the system in which you are using the Smart element.
Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 1.5 mm².
Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 1.5 mm².
Maximum power loss at rated conditions 0 W.
PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
Number of interfaces: 1
Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m üNN)
Supply voltage range: 19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Connection technology: Connection technology
Permissible humidity (storage/transport): 5 % ... 95% (no condensation)
Note for application: Only for industrial use
Power consumption: Min. 0 mA (without connected peripherals)
Wire connection: Conductor connection
Protective circuit: Overvoltage protection | See the system in which you are using the Smart element.;Reverse polarity protection | Reverse polarity protection diode
Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m üNN)
Note on connection type: Refer to the information on the conductor cross-sections in the "Axioline Smart ELEMENTS" user manual.
Special features: GND
Power supply 24 Vdc (through card-edge connector)
Module
ID code (HEX): None
0-bit process data channel
Input address space: 0 bytes (all systems except PROFIBUS);1 bytes (PROFIBUS)
Output address space: 0 bytes
Need for parameter data: 1 bytes
Need for configuration data: 6 bytes
Potential separation/insulation of the voltage ranges: Potential separation/insulation of the voltage ranges
Test voltage: 24 V supply (peripheral) / Functional ground: 500 V AC, 50 Hz, 1 min.
Smart element interface Smart element interface
Potential: Smart Elements logic supply (USE): Potential: Smart Elements logic supply (USE)
Potential: Peripheral supply (UP): Potential: Peripheral supply (UP)
Test voltage: Power supply logic/24-V supply (peripheral): 500 V AC, 50 Hz, 1 min.
Testing voltage: Supply logic/functional earthing: 500 V AC, 50 Hz, 1 min.
Peripherals: Peripherals
