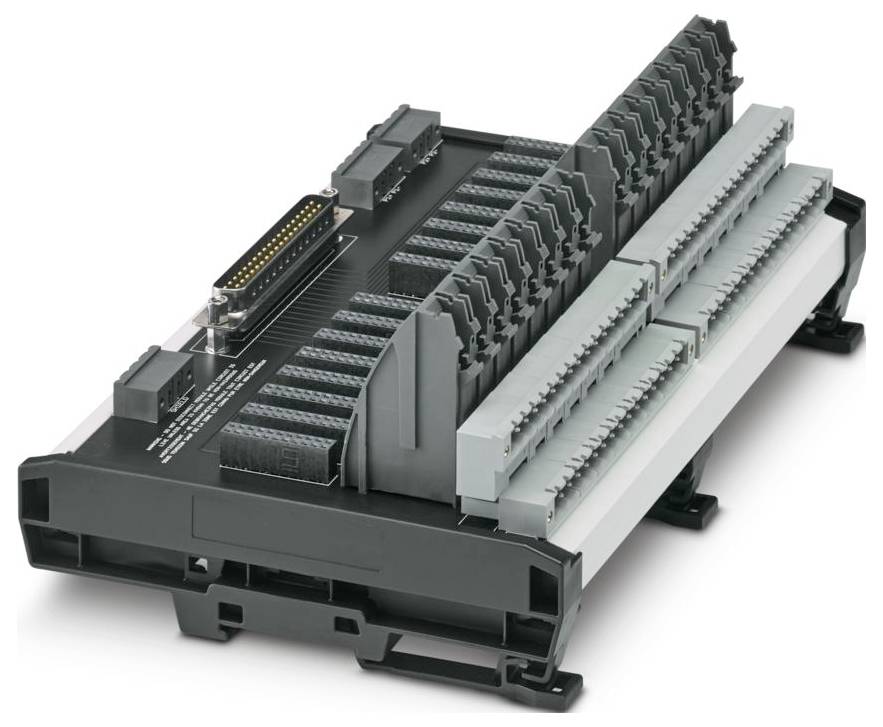

Phoenix Contact BASE-MSTB/D37M/16CH/EX 1065476 Socket module 230 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: VIP I/O marshaling
- Number of pins: 37
- D-SUB header connection
- Width: 199 mm
- Height: 142.3 mm
- Depth: 78 mm
- Colour: Grey (RAL 7042)
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Altitude: < 2000 meters
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category II III
- Pollution level: 2
- Permissible air humidity (operation): 0 % ... 95% (no condensation)
- Installation position: Any on 35 mm DIN rail as per EN 60715
- ATEX
- IECEx: IECEx
- Identification: Class I, div. 2 GROUPS A, B, C, D T4
- Class I, Zone 2, AEx ec IIC T4 GC
- Ex ec IIC T4 GC
- Connection according to standard: IEC / EN
- CSA 22CA80084549X
- Article dimensions: Article dimensions
- UKEX
- Status display: No.
- Number of channels: 16
- Operating voltage maximum Umax: 30 V DC (P2 and field terminals);230 V AC (P2 and field terminals);30 V DC (P1 terminals);30 V DC (D-SUB)
- Status display available: No.
- Safety specifications: Safety specifications
- Input voltage UI 30 V (per channel)
- INDUCTANCE Li 0 mH
- Capacity CI 0 µF
- Safety technical maximum voltage At 253 V AC
- Input current II: 1 A (per channel)
- CSA, USA/Canada: CSA, USA/Canada
- Number of connections: 1
- Max. Current carrying capacity per branch: 3 A (field signal);1 A (control contacts)
- Field level: Field level
- Control level: Control level
- Max. Permissible current: 15 A (P1 or P2 terminals)
- Max. Permissible total current: 15 A (per module)
- Product type
Socket module
- Display
No
- Min. operating voltage
19.2 V DC
- Operating voltage
19.2 - 30, 230 V DC, V AC
- Max. operating voltage
30 V DC
230 V AC
- Operating voltage
230 V AC
- Height
142.3 mm
- Length
78 mm
- Width
199 mm
IP20
- Dim
(L x W x H) 78 x 199 x 142.3 mm
- Manufacturer part #
1065476
- Type
BASE-MSTB/D37M/16CH/EX
- Fitting type (details)
Carry rail mounting
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
- Ex Zoning
2
- Content
1 pc(s)
- Depth
78 mm
- Test current
15 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562513 Phoenix Contact BASE-MSTB/D37M/16CH/EX 1065476 Socket module 230 V AC
User & Safety Instructions
User & Safety Instructions 3562513 Phoenix Contact BASE-MSTB/D37M/16CH/EX 1065476 Socket module 230 V AC
Description
16-channel VIP I/O Marshall base unit with 37-pin D-Sub connector for universal use. Pluggable field and supply terminals available as accessories. Optionally with screw or push-in connection technology.
