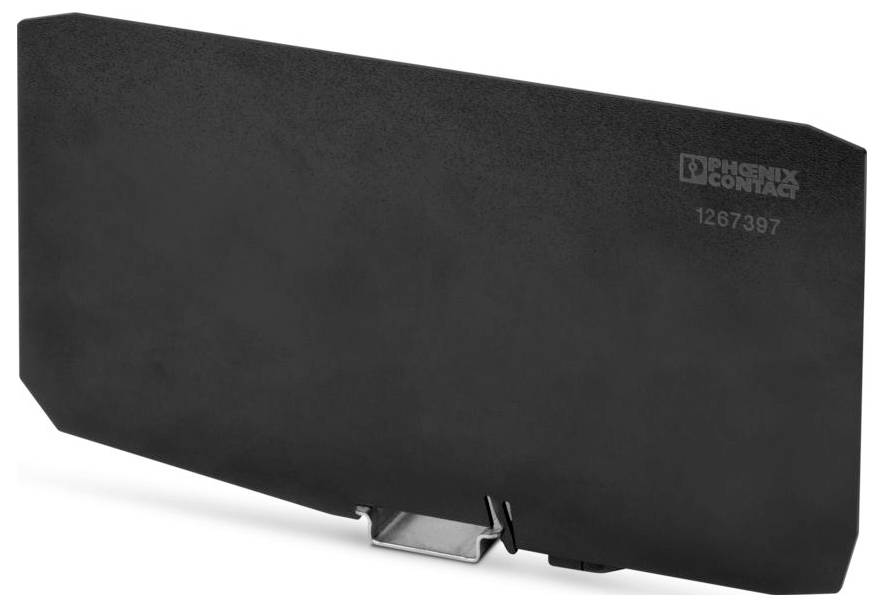

Phoenix Contact BASE/U/RAIL DIVIDER 1267397 Cut-off plates
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: VIP I/O marshaling
- Width 1.5 mm
- Height: 202.3 mm
- Depth: 110.65 mm
- Colour: Black (RAL 9005)
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -40 °C ... 75 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Permissible air humidity (operation): 0 % ... 95% (no condensation)
- Material: thermoplastic
- Product type
Cut-off plates
- Min. operating voltage
19.2 V DC
- Operating voltage
19.2 V DC (min)
- Height
202.3 mm
- Length
110.65 mm
- Width
1.5 mm
- Dim
(L x W x H) 110.65 x 1.5 x 202.3 mm
- Manufacturer part #
1267397
- Type
BASE/U/RAIL DIVIDER
- Type
Thermoplastic
- Max. ambient temperature
75 °C
- Min. ambient temperature
-40 °C
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3568103 Phoenix Contact BASE/U/RAIL DIVIDER 1267397 Cut-off plates
User & Safety Instructions
User & Safety Instructions 3568103 Phoenix Contact BASE/U/RAIL DIVIDER 1267397 Cut-off plates
Description
VIP I/O marshaling separator plate for the safe separation between non-ex i and Ex i mounted socket modules, for universal use in UM-PRO construction ...MSTB... The separator plate is mounted directly on the support rail at the end of the base module.
