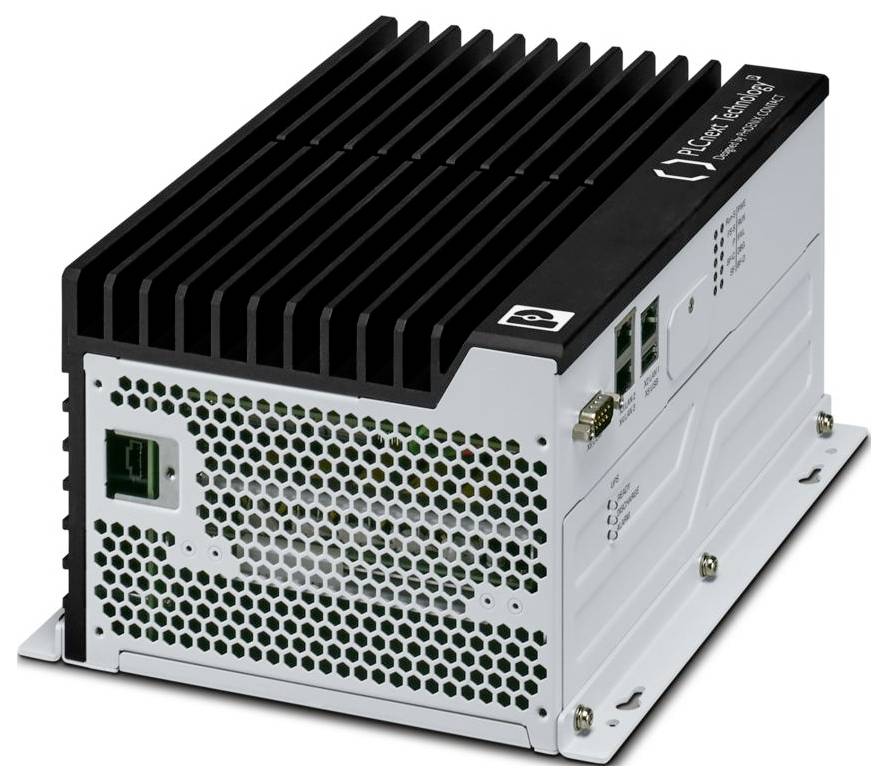

Phoenix Contact BPC 9102S 1246285 Controller 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: PLCnext Control
- Design: Stand-alone
- RJ45 socket connection
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
- Wire cross-section AWG: 24 ... 12
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): 0 °C ... 60 °C to 2000 m üNN;0 °C ... 55 °C 2000 m ... 3000 m üNN;0 °C ... 50 °C 3000 m ... 4000 m üNN
- Ambient temperature (storage/transport): -30 °C ... 85 °C
- Mounting type: Wall mounting
- Insulation properties: Insulation properties
- Permissible air humidity (operation): 10 % ... 95% (no condensation)
- Shock (Operation): 15g (IEC 61131-2)
- Vibration (operation): 3g (10 Hz ... 55 Hz) (according to EN 60068-2-6/IEC 60068-2-6)
- Transmission speed 1000/2000 MBit/s (1000 MBit/s (LAN 2 and LAN 3), 1000/2000 MBit/s (LAN 1))
- Maximum power loss at rated conditions: Max. 55 W.
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Number of interfaces: 3
- External dimensions: External dimensions
- Width / Height / Depth: 218 mm / 250 mm / 135 mm (without fan module);218 mm / 285 mm / 135 mm (with fan module)
- Air pressure (operation): 60 kPa ... 108 kPa (up to 4000 m üNN)
- Ethernet: Ethernet
- Bus system RJ45
- Supply voltage range: 19.2 V DC ... 30 VDC (including ripple (3.6 VSS))
- Permissible humidity (storage/transport): 5 % ... 95% (no condensation)
- Note for application: Only for industrial use
- Function: Function
- Supply: Supply
- Air pressure (storage/transport): 58 kPa ... 108 kPa (up to 4500 m üNN)
- Power consumption typical 2.1 A.
- Power consumption max. 2.3 A
- Functionality: Functionality
- Safety specifications: EN ISO 13849: Safety specifications: EN ISO 13849
- Performance Level (PL): Max. e
- Safety Integrity Level (SIL): Max. 3
- Safety specifications : EN IEC 62061: Safety specifications: EN IEC 62061
- Power consumption: Type. 50 W; max. 55 W
- USB USB USB
- Device function: PROFINET controller, PROFINET device
- PROFINET: PROFINET
- Performance class B
- Security specifications : IEC 61508 - High-Demand: Security specifications: IEC 61508 - High-Demand
- Power supply connection: Screw terminals, pluggable
- Real-time clock: Integrated (battery-buffered)
- Number of supported subscribers: Maximum 256
- System requirements: System requirements
- Supported programming languages: Instruction list (STL/IL);runtime language (AS/SFC);contact plan (LAD/LD);function block language (FBS/FBD);structured text (ST);C++;C#;Java;Python®;Simulink®
- Web server: Yes
- IEC-61131 runtime system: IEC-61131 runtime system
- Program memory 32 MB
- Data storage 64 MB
- Data remanence memory:4 MB
- RAM 16384 MB DDR4-2400
- Engineering tool: PLCnext Engineer;Eclipse®;Visual Studio®;MATLAB®/ Simulink®
- SUPPLY VOLTAGE (DC) 24 V DC
- Safety function: Yes
- Trusted Platform Module: FTPM 1.2 (non-Chinese encryption)
- Update rate: Min 1 ms
- Application interface: OPC UA®
- Combicon connector: Combicon connector
- Safety Integrity Level Claim Limit (SIL CL): Max. 3
- Shock (storage/transport): 20g (according to EN 60068-2-27/IEC 60068-2-27)
- Vibration (storage/transport): 3g (according to EN 60068-2-6/IEC 60068-2-6)
- Product type
Controller
- Interfaces
USB-A
RJ45
- Operating voltage
24 V DC
- Height
261.1 mm
- Width
217.8 mm
IP20
- Dim
(W x H x D) 217.8 x 261.1 x 135 mm
- Connection
USB port
- Manufacturer part #
1246285
- Type
BPC 9102S
- Type
Stand-alone
- Program memory
32 MB
- Fitting type (details)
Wall mounting
- Real-time clock
Yes (built-in)
- Max. ambient temperature
60 °C
- Min. ambient temperature
0 °C
- Depth
135 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3567667 Phoenix Contact BPC 9102S 1246285 Controller 24 V DC
User & Safety Instructions
User & Safety Instructions 3567667 Phoenix Contact BPC 9102S 1246285 Controller 24 V DC
Description
Safety control, PLCnext control, Intel® Core™ i7-10700TE, 8x 2 GHz (standard), PROFINET controller, PROFINET device, 3x Ethernet, PLCnext engineer, 16 GB RAM, Yocto/Linux®.
