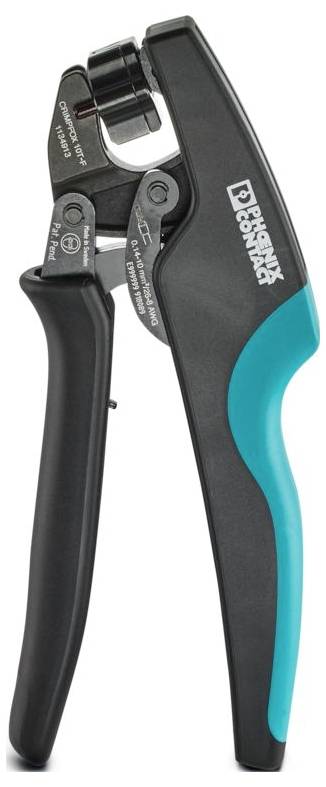

Phoenix Contact CRIMPFOX 10T-F 1134913 Squeezer Ferrules 0.14 up to 10 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- With locking device (for mechanical tools): Yes
- Cross-section: 0.14-10 mm²
- Product type
Squeezer
- Manufacturer part #
1134913
- Range of uses
Ferrules
- Suitable for
Ferrules
- Crimp area
0.14 up to 10 mm²
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
10 mm²
- Length
180 mm
- Suitable for
Phoenix Contact
- Weight
302 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564577 Phoenix Contact CRIMPFOX 10T-F 1134913 Squeezer Ferrules 0.14 up to 10 mm²
User & Safety Instructions
User & Safety Instructions 3564577 Phoenix Contact CRIMPFOX 10T-F 1134913 Squeezer Ferrules 0.14 up to 10 mm²
Description
Crimping pliers, contact type: Insulated and non-insulated wire-end sleeves, standards/regulations: DIN 46228 -1, DIN 46228-4, cross-section min.: 0.14 mm², cross-section max.: 10 mm², for TWIN wire-end sleeves up to 2 x 4 mm², automatic cross-section adjustment, frontal cable entry, crimping: Trapezoid-crimping, weight 302 g, black
