Phoenix Contact CrimpFox Centrus 6S 1213999 Squeezer set Ferrules 0.14 up to 6 mm² Incl. cable cutter, Incl. ferrule set
EAN:
Part number:
Item no:
Number
Total (€ 284.87 / piece)
€
Only 3 Piece(s) available
Technical specifications
- Manufacturer part #
1213999
- Range of uses
Ferrules
- Crimp area
0.14 up to 6 mm²
- Crimp area AWG
10 up to 26 awg
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
26 awg
- Crimp area AWG (max.)
10 awg
- Length
165 mm
- Width
65 mm
- Height
315 mm
- Weight
380 g
- Features
Incl. cable cutter
Incl. ferrule set
Incl. cable stripper
- Product type
Squeezer set
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1581727 Phoenix Contact CrimpFox Centrus 6S 1213999 Squeezer set Ferrules 0.14 up to 6 mm² Incl. cable cutter, Incl. ferrule set
Description

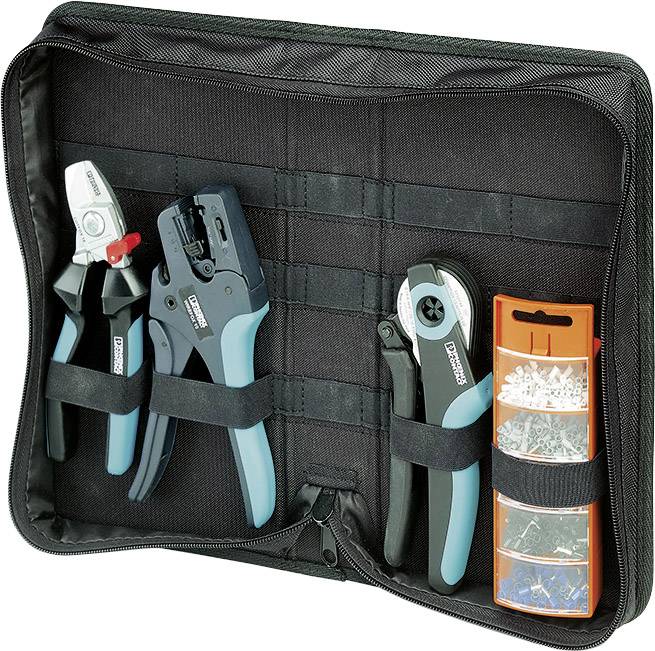

Cutting, stripping and crimp set, packed in the tool case. Crimping pliers CrimpFox Centrus 6S for non-insulated and insulated cable end sleeves DIN 46228 part 1 and 4 of 0.14 mm²... 6 mm², also for twin wire-end sleeves up to 2 x 4 mm², automatic cross-section adjustment, lateral entry, equipped with fall protection. WireFox stripping pliers 10 for cables and conductors from 0.02 to 10 mm², selbstjustierend, stripping length up to 18 mm, cutting capacity up to 10 mm² flexible/1.5 mm² rigid, stripping knife can be replaced. CutFox, angled, for copper and aluminum cable cutter up to 18 mm diameter (up to 50 mm²).
Scope of delivery
- CrimpFox Centrus 6 s
- Assortment of wire end sleeves crimping pliers
- Wire stripping pliers WireFox10
- Cable Cutting Tool CutFox 18.
