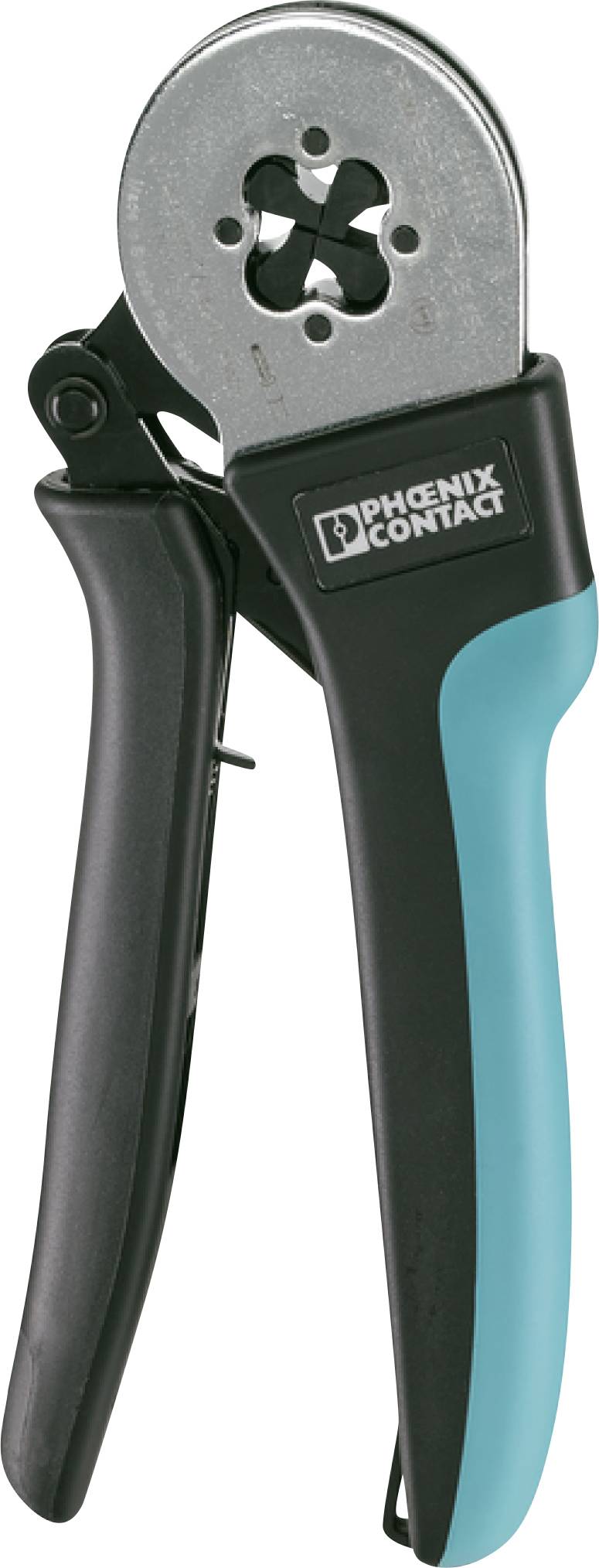

Phoenix Contact CRIMPFOX CENTRUS 6S-NC 1202882 Crimper 1-piece Ferrules 0.14 up to 6 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
CRIMPING PLIERS - CRIMPFOX CENTRUS 6S-NC
- Square crimp
Technical specifications
- Crimping: Square crimp
- DIN 46228-1, DIN 46228-4
- Contact type: Insulated and non-insulated wire end sleeves
- Product type
Crimper
- Manufacturer part #
1202882
- Range of uses
Ferrules
- Suitable for
Ferrules
- Crimp area
0.14 up to 6 mm²
- Crimp area AWG
10 up to 26 awg
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
26 awg
- Crimp area AWG (max.)
10 awg
- Length
175 mm
- Width
65 mm
- Height
22 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2361772 Phoenix Contact CRIMPFOX CENTRUS 6S-NC 1202882 Crimper 1-piece Ferrules 0.14 up to 6 mm²
Datasheet 2361772 Phoenix Contact CRIMPFOX CENTRUS 6S-NC 1202882 Crimper 1-piece Ferrules 0.14 up to 6 mm²
User & Safety Instructions
User & Safety Instructions 2361772 Phoenix Contact CRIMPFOX CENTRUS 6S-NC 1202882 Crimper 1-piece Ferrules 0.14 up to 6 mm²
Description
Crimping pliers, for non-insulated and insulated wire-end sleeves DIN 46228 part 1 and 4 of 0.14 mm² ... 6 mm², also for TWIN wire end sleeves up to 2 x 4 mm², automatic cross-section adjustment, lateral entry
