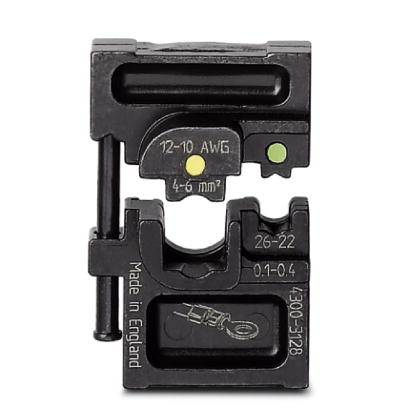

Phoenix Contact CRIMPFOX-M RCI 6/DIE 1212073 Crimp die Insulated cable lugs 0.1 up to 6 mm² Suitable for brand (pliers)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
14-day return policy included
Technical specifications
- Compression: Oval Crimp; capacity 0.1 - 0.4 / 4 - 6 mm²; AWG 26 - 22, 12 - 10; Number of cavities: 2
- Product type
Crimp die
- Manufacturer part #
1212073
- Range of uses
Insulated cable lugs
- Crimp area AWG
10 up to 26 awg
- Crimp area (min.)
0.1 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
26 awg
- Crimp area AWG (max.)
10 awg
- Length
114 mm
- Width
75 mm
- Height
25.5 mm
- Weight
80.4 g
- Suitable for
Phoenix Contact
- Suited for model
469547
- Crimp area
0.1 up to 6 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 469553 Phoenix Contact CRIMPFOX-M RCI 6/DIE 1212073 Crimp die Insulated cable lugs 0.1 up to 6 mm² Suitable for brand (pliers)
User & Safety Instructions
User & Safety Instructions 469553 Phoenix Contact CRIMPFOX-M RCI 6/DIE 1212073 Crimp die Insulated cable lugs 0.1 up to 6 mm² Suitable for brand (pliers)
Description
Die for Crimpfox-M, for insulated cable shoes 0.1 - 0.4 mm² and 4-6 mm² (light green, yellow), packed in a mounting storage box
Hints
This text is machine translated.
