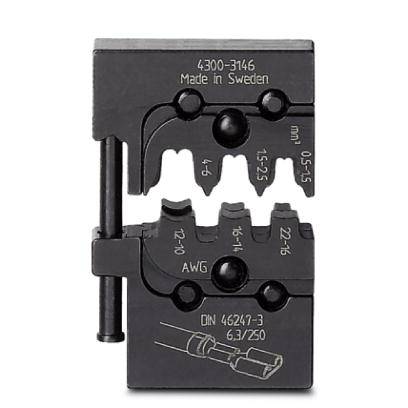

Phoenix Contact CRIMPFOX-M SC 6/DIE 1212085 Crimp die Non-insulated blade terminal receptacles 0.5 up to 6 mm² Suitable
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
Technical specifications
- Compression: B-Crimp; capacity 0.5 - 6 / 1.5 - 2.5 / 4 - 6 mm²; AWG 22 - 16 / 16 - 14, 12 - 10; Number of cavities: 3
- Product type
Crimp die
- Manufacturer part #
1212085
- Range of uses
Non-insulated blade terminal receptacles
- Crimp area AWG
10 up to 22 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
22 awg
- Crimp area AWG (max.)
10 awg
- Length
114 mm
- Width
75 mm
- Height
25.5 mm
- Weight
80.32 g
- Suitable for
Phoenix Contact
- Suited for model
469547
- Crimp area
0.5 up to 6 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 469704 Phoenix Contact CRIMPFOX-M SC 6/DIE 1212085 Crimp die Non-insulated blade terminal receptacles 0.5 up to 6 mm² Suitable
User & Safety Instructions
User & Safety Instructions 469704 Phoenix Contact CRIMPFOX-M SC 6/DIE 1212085 Crimp die Non-insulated blade terminal receptacles 0.5 up to 6 mm² Suitable
Description
Die for Crimpfox-M, for non-insulated female spade connectors 0.5 - 6 mm², packed in a mounting storage box
Hints
This text is machine translated.
