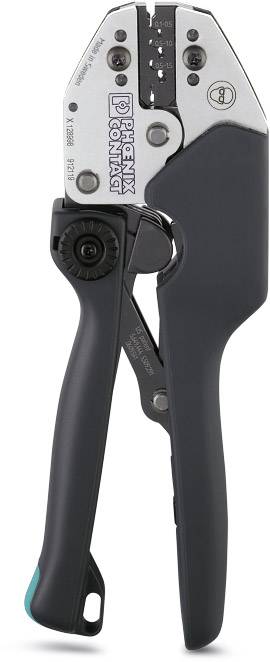

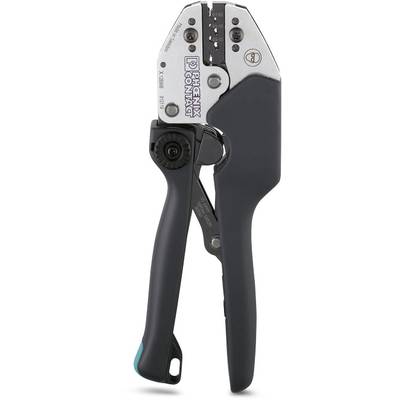

Phoenix Contact CRIMPFOX-SC 1,5-M 1212725 Crimper Non-insulated blade terminal receptacles 0.1 up to 1.5 mm²
EAN:
Part number:
Item no:
Number
Total (€ 222.69 / piece)
€ 222.69
plus VAT.
14-day return policy included
Technical specifications
- Product type
Crimper
- Manufacturer part #
1212725
- Range of uses
Non-insulated blade terminal receptacles
- Suitable for
Non-insulated blade terminals (2.8/4.8 mm width)
- Crimp area
0.1 up to 1.5 mm²
- Crimp area AWG
16 up to 26 awg
- Crimp area (min.)
0.1 mm²
- Crimp area (max.)
1.5 mm²
- Crimp area AWG (min.)
26 awg
- Crimp area AWG (max.)
16 awg
- Length
204 mm
- Width
22 mm
- Height
76 mm
- Weight
620.3 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1272836 Phoenix Contact CRIMPFOX-SC 1,5-M 1212725 Crimper Non-insulated blade terminal receptacles 0.1 up to 1.5 mm²
Description
For non-insulated female spade connectors 2.8 and 4.8 mm. · B-crimp.
Hints
Special order, no right of withdrawal. This text is machine translated.
