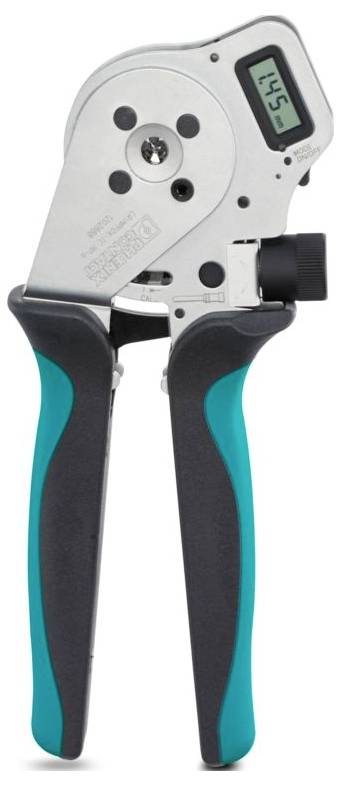

Phoenix Contact CRIMPFOX-TC MP-6 1202888 Crimper Machined contacts 0.14 up to 6 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Execution/activation: Others
- With locking device (for mechanical tools): Yes
- Cross-section: 0.14-6 mm²
- Length: 236 mm
- Product type
Crimper
- Manufacturer part #
1202888
- Range of uses
Machined contacts
- Crimp area
0.14 up to 6 mm²
- Crimp area AWG
10 up to 26 awg
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
26 awg
- Crimp area AWG (max.)
10 awg
- Length
236 mm
- Material
Steel
- Suitable for
Phoenix Contact
- Suited for model
CRIMPFOX-TC MP6
- Width
94 mm
- Height
28 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566333 Phoenix Contact CRIMPFOX-TC MP-6 1202888 Crimper Machined contacts 0.14 up to 6 mm²
User & Safety Instructions
User & Safety Instructions 3566333 Phoenix Contact CRIMPFOX-TC MP-6 1202888 Crimper Machined contacts 0.14 up to 6 mm²
Description
Crimping pliers, for turned contacts, universal cross-section setting, up to max. 6.0 mm², digital display with 0.01 mm step width, automatic lock can be unlocked, necessary accessories locator for contact positioning.
For twisted crimp contacts of 0.14 mm²...4.0 mm² of the series CK1.6 ED..., CK2.5 ED..., CK4.0 ED..., CC1.5-TS-2.10..., CC1.5-TS-2.50..., The detailed list of crimp contacts can be found in the package insert.
This text is machine translated.
For twisted crimp contacts of 0.14 mm²...4.0 mm² of the series CK1.6 ED..., CK2.5 ED..., CK4.0 ED..., CC1.5-TS-2.10..., CC1.5-TS-2.50..., The detailed list of crimp contacts can be found in the package insert.
This text is machine translated.
System requirements
- Application, only with locator 1142829.
