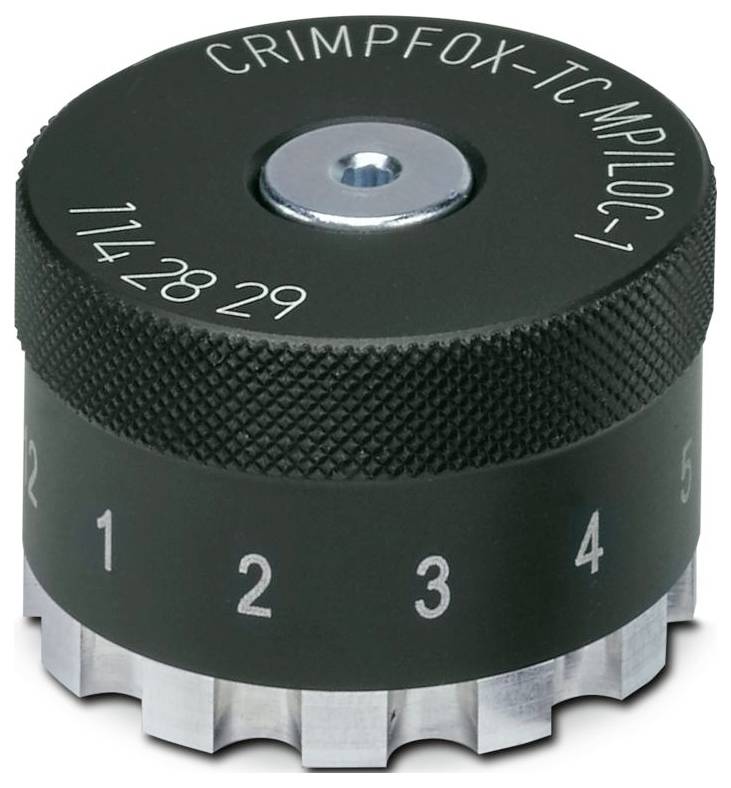

Phoenix Contact CRIMPFOX-TC MP/LOC-1 1142829 Spare locator Machined contacts 0.14 up to 4 mm² Suitable for brand (pliers
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Width 12.5 mm
- Height: 32 mm
- Colour: Black (RAL 9005)
- Length: 23 mm
- Material: Aluminium
- Note for application: Locator for twisted crimp contacts of 0.14 mm²...4.0 mm² of the series CK1.6 ED..., CK2.5 ED..., CK4.0 ED..., CC1.5-TS-2.10..., CC1.5-TS-2.50...
- Product type
Spare locator
- Manufacturer part #
1142829
- Range of uses
Machined contacts
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
4 mm²
- Length
23 mm
- Width
12.5 mm
- Height
32 mm
- Suitable for
Phoenix Contact
- Suited for model
CRIMPFOX-TC MP6
- Crimp area
0.14 up to 4 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564797 Phoenix Contact CRIMPFOX-TC MP/LOC-1 1142829 Spare locator Machined contacts 0.14 up to 4 mm² Suitable for brand (pliers
User & Safety Instructions
User & Safety Instructions 3564797 Phoenix Contact CRIMPFOX-TC MP/LOC-1 1142829 Spare locator Machined contacts 0.14 up to 4 mm² Suitable for brand (pliers
Description
Spare Locator, contact type: Turned contacts, black
