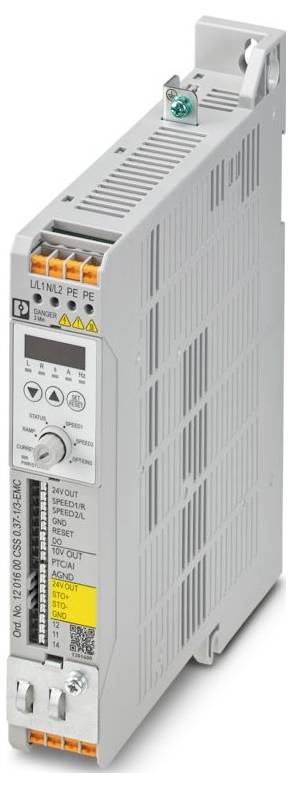

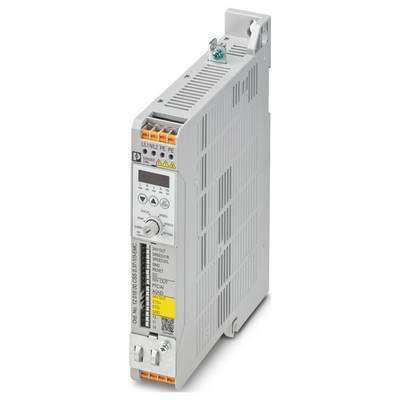

Phoenix Contact CSS 0.37-1/3-EMC Variable speed starter 5.3 A
EAN:
Part number:
Item no:
Output voltage (max.)
230 V AC
Max. rotor current
5.3 A
Product type
Variable speed starter
Type
CSS 0.37-1/3-EMC
Dim
(W x H x D) 35 x 210 x 195 mm
Datasheet (PDF)
Technical specifications
- Number of phases: 1
- Number of steps: 2
- Base element without cover: No.
- Operating mode: Key/touch key
- Illumination: None
- Continuous power regulation: Yes
- With temperature sensor: No.
- Mounting type: Other
- Nominal current: 5.3 A
- RAL number: 7042
- Switch contact: Yes
- Type
CSS 0.37-1/3-EMC
- Output voltage (max.)
230 V AC
- Max. rotor current
5.3 A
- Dim
(W x H x D) 35 x 210 x 195 mm
- Width
35 mm
IP20
- Manufacturer part #
1201600
- Factory colour
Grey
- Depth
195 mm
- Height
210 mm
- UKCA
yes
- Product type
Variable speed starter
Documents & Downloads
Datasheet
Datasheet 3566090 Phoenix Contact CSS 0.37-1/3-EMC Variable speed starter 5.3 A
User & Safety Instructions
User & Safety Instructions 3566090 Phoenix Contact CSS 0.37-1/3-EMC Variable speed starter 5.3 A
Description
Speed starter with soft start-up and adjustable speed for starting and reversing motors up to 230 V AC and 0.37 kW, adjustable motor protection, analogue input, STO-function up to SIL 3 / PL e, single-phase load input, with integrated EMC filter
